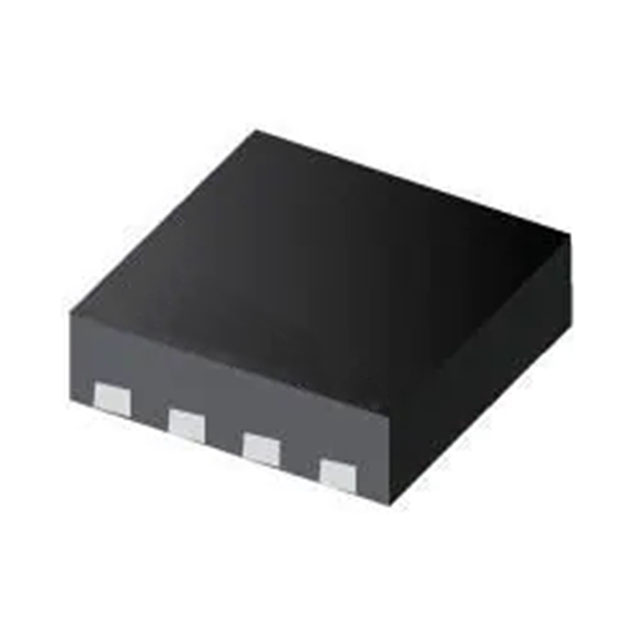

OPA2211MDRGTEP is precision operational amplifiers achieves very-low 1.1-nV/VHz noise density with a supply current of only 3.6 mA.

Features

Low Voltage Noise: 1.1 nV/vHz at 1 kHz

Input Voltage Noise: 80 nVpp (0.1 to 10 Hz)

THD+N:-136 dB(G= 1,f = 1 kHz)

Offset Voltage: 180 μV (Max)

Offset Voltage Drift: 0.35 μVrC (Typ)

Low Supply Current: 3.6 mA/Ch (Typ)

Unity-Gain Stable

Gain Bandwidth Product:

80 MHz (G= 100)

45 MHz (G= 1)

Slew Rate: 27 Vμs

16-Bit Settling: 700 ns

Wide Supply Range:

+2.25V to +18V, +4.5V to +36 V

Rail-to-Rail Output

Output Current: 30 mA

Applications

PLL Loop Filter

Low-Noise, Low-Power Signal Processing

16-Bit ADC Drivers

DAC Output Amplifiers

Active Filters

Low-Noise Instrumentation Amplifiers

Ultrasound Amplifiers

Professional Audio Preamplifiers

Low-Noise Frequency Synthesizers

Infrared Detector Amplifiers

Hydrophone Amplifiers

Geophone Amplifiers

Medical
