The ADS122C04IRTER is a 24-bit precision analogue-to-digital converter (ADC) that combines features to reduce system cost and component count in small sensor signal measurement applications. The device features two differential or four single-ended inputs via a flexible input multiplexer (MUX), a low-noise programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, and a precision temperature sensor.

Features

- Current consumption as low as 315µA (typical)

- Wide supply voltage range: 2.3V to 5.5V

- Programmable gain: 1 to 128

- Programmable data rate: up to 2kSPS

- Up to 20-bit effective resolution

- Synchronised 50Hz and 60Hz suppression at 20SPS using single-cycle stabilised digital filters

- Two differential inputs or four single-ended inputs

- Dual matched programmable current sources: 10µA to 1.5mA

- Integrated 2.048V reference: 5ppm/°C drift (typical)

- Integrated 2% precision oscillator

- Integrated temperature sensor: 0.5°C accuracy (typical)

- I2C-compatible interface

- Supported I2C bus speed modes: standard, fast, ultra-fast

- 16-pin configurable I2C address

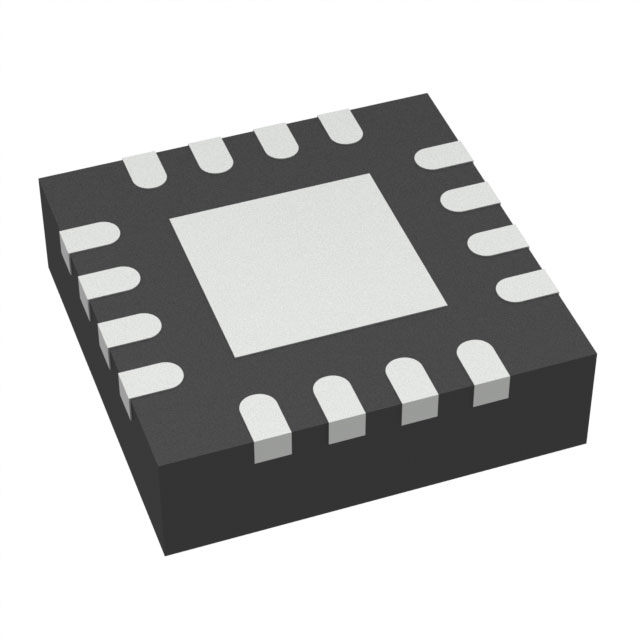

- Package: 3.0mm × 3.0mm × 0.75mm WQFN

Applications

- Field transmitters: temperature, pressure, strain, flow

- Analogue input modules for programmable logic controllers (PLCs) and distributed control systems (DCSs)

- Temperature controllers

- Calorimeters

- Patient monitoring systems: temperature, blood pressure
