The ADS7057IRUGR is a 14-bit 2.5 MSPS SAR ADC that supports fully differential inputs in the ±AVDD range from 2.35V to 3.6V.

Internal offset voltage calibration maintains excellent offset voltage specifications over the full AVDD and operating temperature range.

The device supports an SPI-compatible serial interface controlled by CS and SCLK signals. The input signal is sampled by the falling edge of CS, while SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65V to 3.6V) for direct connection to a variety of host controllers, and the nominal DVDD range of the ADS7057 (1.65V to 1.95V) is compliant with the JESD8-7A standard.

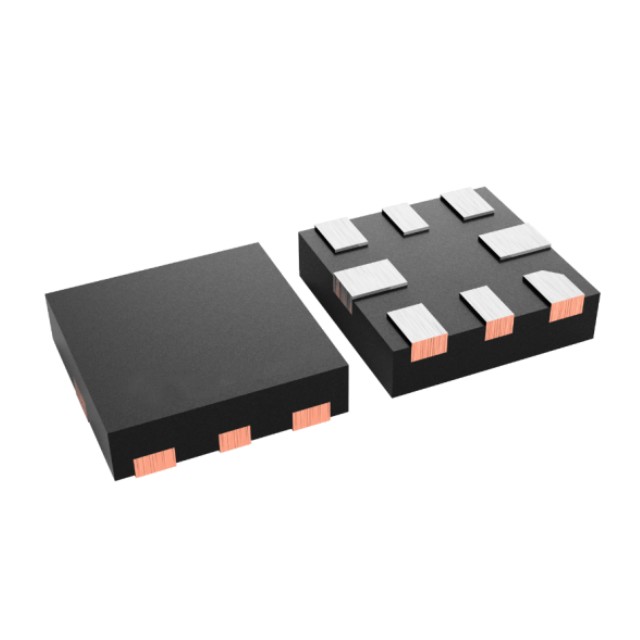

The ADS7057IRUGR is available in a small 8-pin X2QFN package for operation over a wide range of industrial temperatures (-40°C to +125°C). The device's small size and extremely low power consumption make it ideal for space-constrained, battery-powered applications requiring high-speed, high-resolution data acquisition.

Features

• 2.5-MSPS Throughput

• Small Package Size: X2QFN-8 Package (1.5 mm × 1.5 mm)

• Fully Differential Input Range: ±AVDD

• Wide Operating Range:

– AVDD: 2.35 V to 3.6 V

– DVDD: 1.65 V to 3.6 V (Independent of AVDD)

– Temperature Range: –40°C to +125°C

• Excellent Performance:

– 14-Bit NMC DNL, ±0.9-LSB INL

– 79.5-dB SINAD at 2 kHz

– 77-dB SINAD at 1 MHz

• Low Power Consumption:

– 3.6 mW at 2.5 MSPS With 3.3-V AVDD

– 160 µW at 100 kSPS With 3.3-V AVDD

– 82 µW at 100 kSPS With 2.5-V AVDD

• Integrated Offset Calibration

• SPI-Compatible Serial Interface: 60 MHz

• JESD8-7A Compliant Digital I/O

Applications

• Optical Encoders

• Sonar Receivers

• Fish Finders

• I-Q Demodulators

• Optical Line Cards and Modules

• Thermal Imaging Cameras

• Ultrasonic Flow Meters
