The ADS4225IRGCR device is a low-speed variant of the ADS42xx ultra-low-power family of dual 12-bit analogue-to-digital converters (ADCs). The device achieves high dynamic performance through innovative design techniques and operates from a 1.8V supply with very low power consumption. This topology makes the ADS422x ideally suited for multicarrier, large bandwidth communications applications.

Features

- Ultra-low power consumption, 1.8V single supply, CMOS output:

- 183mW total power consumption at 65MSPS

- 277mW total power consumption at 125MSPS

- 332mW total power consumption at 160MSPS

- High Dynamic Performance:

- Spurious Free Dynamic Range (SFDR) of 88dBc at 170MHz

- Signal-to-Noise Ratio (SNR) of 71.4dBFS at 170MHz

- Crosstalk: >90dB at 185MHz

- Programmable gain up to 6dB to support SNR/SFDR trade-offs

- DC offset correction

- Output interface options:

- 1.8V parallel CMOS interface

- Double Data Rate (DDR) Low Voltage Differential Signalling (LVDS) with programmable swing support:

- Standard swing: 350mV

- Low Swing: 200mV

- Supports input clock amplitudes down to 200mVPP

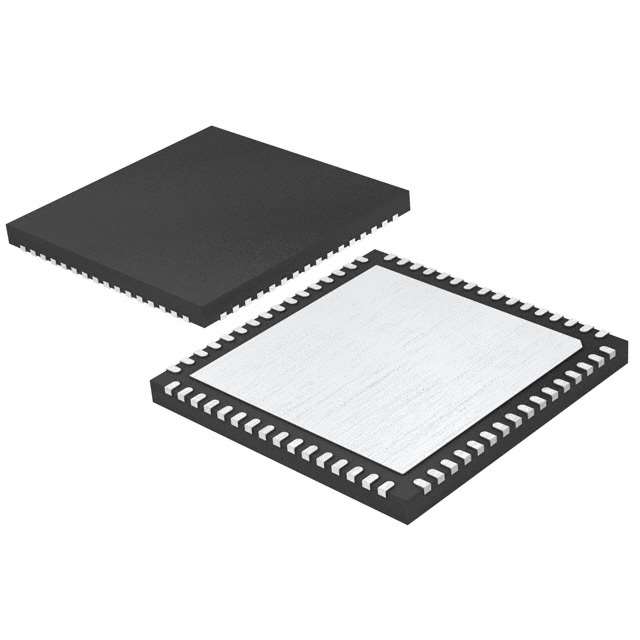

- Package: VQFN-64 (9.00mm × 9.00mm)

Applications

- Wireless Communications Infrastructure

- Software Defined Radio

- Power Amplifier Linearisation
