The ADS5560IRGZR is a high-performance 16-bit family of ADCs with sampling rates up to 40 MSPS. The device supports very-high SNR for input frequencies in the first Nyquist zone. The device includes a low-frequency noise suppression mode that improves the noise from DC to about 1 MHz.

Features

16-Bit Resolution

Maximum Sample Rate: 40 MSPS

Total Power:

865 mW at 80 MSPS

674 mW at 40 MSPS

No Missing Codes

High SNR: 84 dBFS (3 MHz IF)

SFDR: 85 dBc (3 MHz IF)

Low-Frequency Noise Suppression Mode

Programmable Fine Gain, 1-dB steps Until

6-dB Maximum Gain

Double Data-Rate (DDR) LVDS and Parallel

CMOS Output Options

Internal and External Reference Support

3.3-V Analog and Digital Supply

Pin-for-Pin With ADS5547 Family

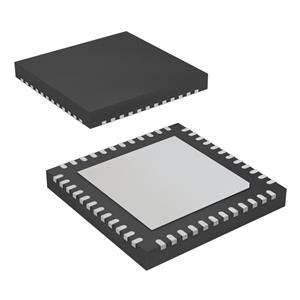

48-VQFN Package (7.00 mm × 7.00 mm)

Applications

• Medical Imaging, MRI

• Wireless Communications Infrastructure

• Software Defined Radio

• Test and Measurement Instrumentation

• High Definition Video
