The ADS8528SRGCR features eight low-power, successive approximation register (SAR)-based 12-bit analogue-to-digital converters (ADCs), each with true bipolar inputs. The channels are grouped in pairs of four and are capable of acquiring signals simultaneously at rates up to 650kSPS.

The devices allow a choice of parallel or serial interfaces and support daisy-chain connections. A programmable reference allows the processing of analogue input signals with amplitudes up to ±12V.

Product Attributes

Product Category: Analogue to Digital Converters - ADCs

Family: ADS8528

Mounting Style: SMD/SMT

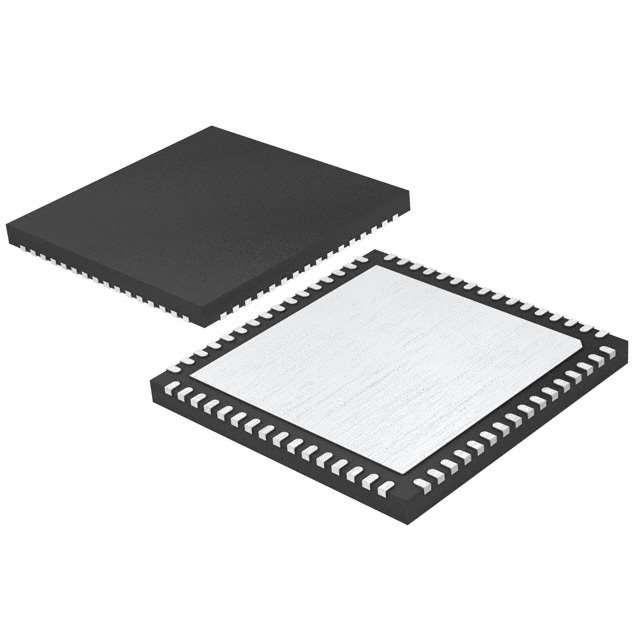

Package / Case: VQFN-64

Resolution: 12 bit

Number of Channels: 8 Channel

Interface Type: Parallel, SPI

Sample ratio: 650 kS/s

Input type: Single-Ended

Architecture: SAR

Analogue supply voltage: 4.5 V to 5.5 V

Digital supply voltage: 2.7 V to 5.5 V

SNR - Signal-to-Noise Ratio: 73.9 dB

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Features: Daisy-Chainable, Oscillator

Humidity Sensitivity: Yes

Number of Converters: 8 Converter

Operating supply voltage: 4.5 V to 5.5 V

Output Type: CMOS

Pd-Power Dissipation: 430.1 mW

Power consumption: 335 mW

Reference type: External, Internal

Reference voltage: 2.5 V, 3 V

SINAD - Signal-to-noise and distortion ratio: 73.8 dB

Supply voltage - max: 5.5 V

Supply voltage - min: 4.5 V

Applications

• Protection Relays

• Power Quality Measurement

• Multi-Axis Motor Controls

• Programmable Logic Controllers

• Industrial Data Acquisition
