The ADS1675IPAGR is a high-speed, high-precision analogue-to-digital converter (ADC). It features an advanced delta-sigma () architecture and operates at speeds up to 4MSPS with excellent AC performance and DC accuracy.

The ADS1675IPAGR ADC consists of a low-drift modulator with out-of-range detection and a dual-path programmable digital filter. The dual filter path allows the user to choose between two post-processing filters: low latency or wide bandwidth. The low-delay filter provides a fast (as fast as 2.65µs) solution for applications with large transient variations, such as multiplexers. The wide-bandwidth path provides optimised frequency response for AC measurements, with passband ripple of less than ±0.00002dB, stopband attenuation of 86dB, and a bandwidth of 1.7MHz.

Product Attributes

Number of bits: 24

Sample rate (per second): 4M

Number of Inputs: 1

Input Type: Differential

Data Interface: LVDS - Serial, SPI

Configuration: ADC

Number of A/D Converters: 1

Architecture: Triangular Integral

Reference Type: External

Voltage - Supply, Analogue: 5V

Voltage - Powered, Digital: 2.85V ~ 3.15V

Operating Temperature: -40°C ~ 85°C

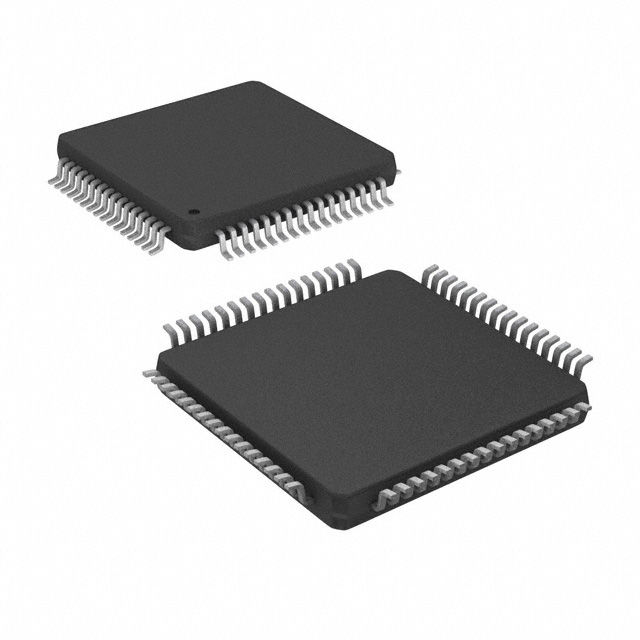

Package/Case: 64-TQFP

Supplier Device Package: 64-TQFP (10x10)

Mounting Type: Surface Mount

Applications

Automated test equipment

Medical imaging

Scientific instruments

Test and Measurement
