The ADS114S06IPBSR 16-bit delta-sigma analogue-to-digital converter (ADC) with PGA and voltage reference for precision sensor measurements has low power consumption and features reduced system cost and component count in small-signal sensor applications. In addition, digital filters provide excellent low latency conversion results and 50Hz or 60Hz rejection for noisy industrial environments.

Specification

Product Category: Analogue to Digital Converters - ADCs

Series: ADS114S06

Mounting Style: SMD/SMT

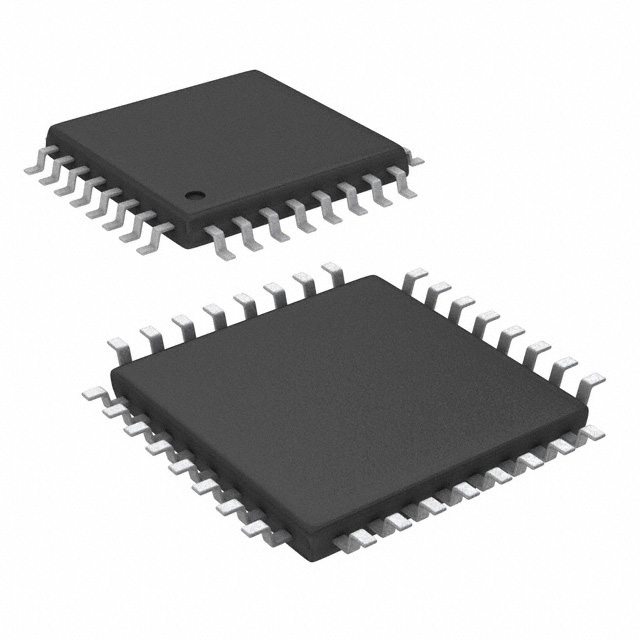

Package / Case: TQFP-32

Resolution: 16 bit

Number of Channels: 6 Channel

Interface type: SPI

Sample ratio: 4 kS/s

Input type: Differential/Single-Ended

Architecture: Sigma-Delta

Analogue supply voltage: 2.7 V to 5.25 V

Digital supply voltage: 2.7 V to 3.6 V

Minimum operating temperature: - 50 C

Maximum operating temperature: + 125 C

Features: 50/60 Hz Rejection, Excitation Current Sources (iDACs), GPIO, Oscillator, PGA, Temp Sensor

Humidity Sensitivity: Yes

Number of Converters: 1 Converter

Pd-Power Dissipation: 1.75 mW

Power Dissipation: 1.75 mW

Product Type: ADCs - Analog to Digital Converters

Reference Type: External, Internal

Reference Voltage: 2.5 V

Shutdown: No Shutdown

Supply Voltage - Max: 5.25 V

Unit weight: 225.600 mg

Product Applications

• Sensors and transmitters: temperature, pressure, stress, flow rate

• Analogue input modules for Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS)

• Temperature controllers

• Climate chambers, industrial ovens
