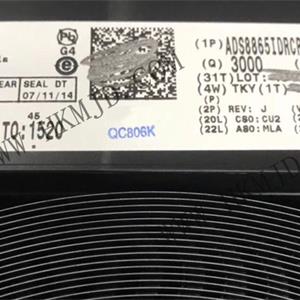

The ADS8865IDRCR is a 16-bit, 400kSPS, true differential input, analogue-to-digital converter (ADC). The device operates with a 2.5V to 5V external reference to provide a wide signal range without additional signal conditioning. This reference voltage setting is independent of, and can exceed, the analogue supply voltage (AVDD).

The device provides an SPI-compatible serial port, which also supports daisy-chain operation for cascading multiple devices. An optional busy indicator bit allows easy synchronisation with the digital host.

Product Features

Sampling rate: 400kHz

No delayed outputs

Unipolar, true differential input range: -VREF to +VREF

Wide common-mode voltage range: 0V to VREF, common-mode rejection ratio (CMRR) 90dB (min)

SPI-compatible serial interface with daisy-chain option

Excellent AC and DC performance:

Signal-to-Noise Ratio (SNR): 96dB, Total Harmonic Distortion (THD): -115dB

Integral nonlinearity (INL): ±1.0 LSB (max)

Differential Non-Linearity (DNL): ±1.0 LSB (max), 16-bit No Drop Code (NMC)

Wide operating range:

AVDD: 2.7V to 3.6V

DVDD: 1.65V to 3.6V (AVDD independent)

REF: 2.5V to 5V (AVDD-independent)

Operating temperature: -40°C to +85°C

Low power dissipation:

2.6mW at 400kSPS

0.65mW at 100kSPS

65µW at 10kSPS

Current at Disconnect (AVDD): 50nA

Full scale step stabilisation to 16 bits: 1200ns

Package: Small form factor leadless (SON)-10 package

Applications

Automatic Test Equipment (ATE)

Instrumentation and processing cards

Precision medical equipment

Low-power, battery-powered instruments
