The ADS9226IRHBR is a 16-bit dual-channel synchronous sampling analogue-to-digital converter (ADC) with an integrated reference buffer. The device operates from a single 5V supply and supports unipolar and pseudo-differential analogue input signals with excellent DC and AC specifications.

The device supports an SPI-compatible serial (enhanced SPI) interface, making it easy to use with a wide range of microcontrollers, digital signal processors (DSPs), and field-programmable gate arrays (FPGAs).

Features

• High resolution, high throughput:

– 16 bits, 2.048 MSPS

• Fast response time with low latency: 488 ns

• Two simultaneously sampled channels

• Unipolar, pseudo-differential inputs

• Excellent DC and AC performance:

– 16-bits, no missing codes

– ±2.75-LSB max INL

– 90.8-dB SNR, –100-dB THD

• Wide analog supply range from 4 V to 5.5 V

• Integrated reference buffers

• SPI-compatible serial interface

• Extended temperature range: –40°C to +125°C

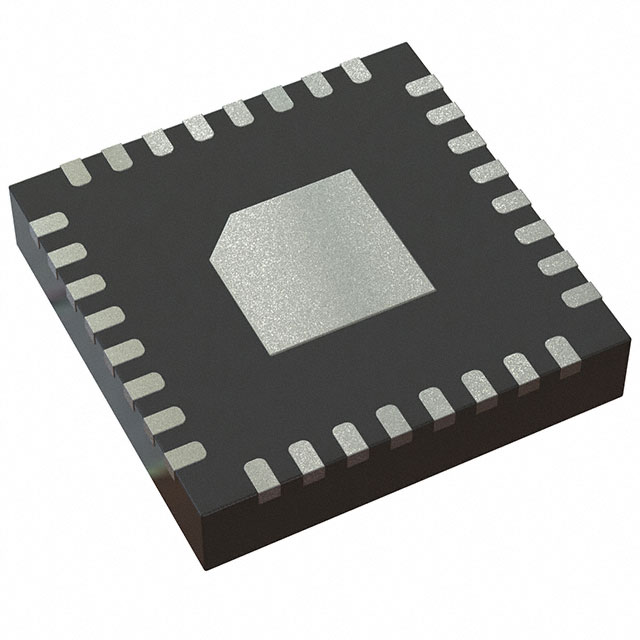

• Small footprint: 5-mm × 5-mm VQFN

Applications

• Servo drive position feedback

• Servo drive power-stage modules

• Telecom optical modules

• Power quality analyzers

• DC/AC power supplies, electronic loads
