The ADS131M03IPWR is a three-channel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ), analogue-to-digital converter (ADC) with wide dynamic range, low power consumption, and dedicated features for power measurement, making it ideally suited for energy metering, power metering, and circuit breaker applications.The ADC inputs can be connected directly to resistive transformer divider networks or power transformers to measure voltages or to current transformers, shunt or Rogowski coil to measure current.

Features

• 3 simultaneously sampling differential inputs

• Programmable data rate up to 64 kSPS

• Programmable gain up to 128

• Noise performance:

– 102-dB dynamic range at gain = 1, 4 kSPS

– 80-dB dynamic range at gain = 64, 4 kSPS

• Total harmonic distortion: –100 dB

• High-impedance inputs for direct sensor connection:

– Input impedance 330-kΩ for gains of 1, 2, and 4

– Input impedance ≥ 1-MΩ for gains of 8, 16, 32, 64, and 128

• Programmable channel-to-channel phase delay calibration:

– 244-ns resolution, 8.192-MHz fCLKIN

• Current-detect mode allows for extremely low power tamper detection

• Fast startup: first data within 0.5 ms of supply ramp

• Integrated negative charge pump allows input signals below ground

• Crosstalk between channels: –120 dB

• Low-drift internal voltage reference

• Cyclic redundancy check (CRC) on communications and register map

• 2.7-V to 3.6-V analog and digital supplies

• Low power consumption: 3.6 mW at 3-V AVDD and DVDD

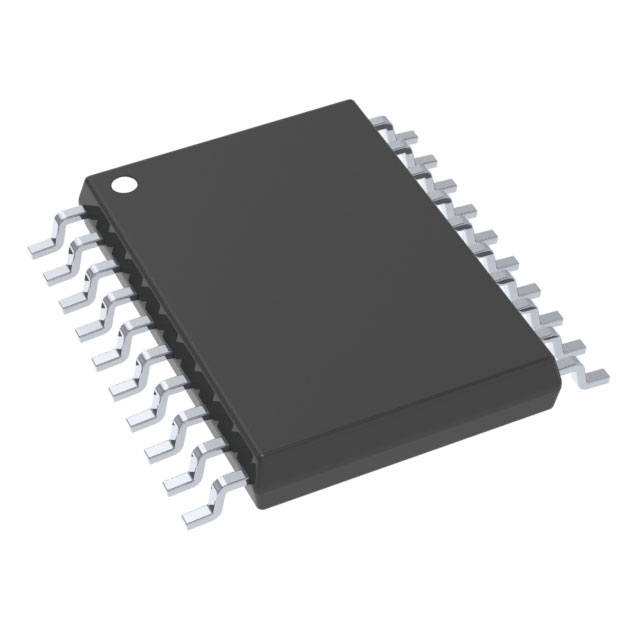

• Packages: 20-pin TSSOP

• Operating temperature range: –40°C to +125°C

Applications

• Electricity meters: commercial and residential

• Circuit breakers

• Protection relays

• Power quality meters

• Battery test equipment

• Battery management systems
