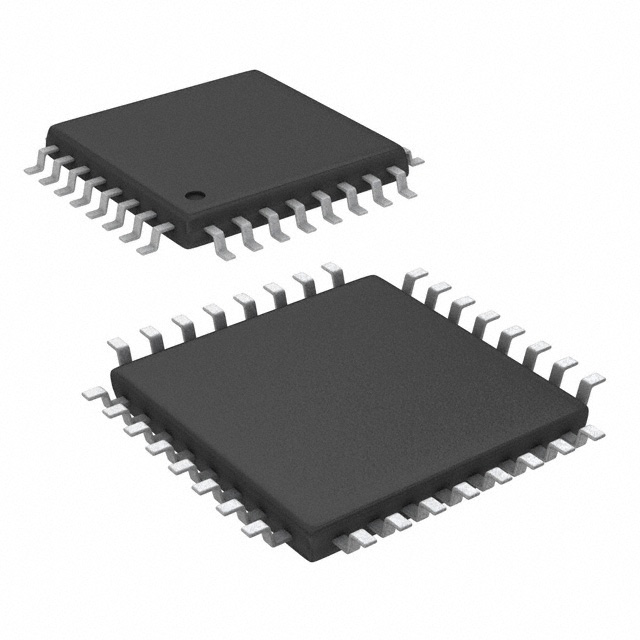

The ADS114S08BIPBSR is a high-precision 16-bit Δ-Σ analogue-to-digital converter (ADC) that combines low power consumption with a wide range of integration features to reduce system cost and the number of components in small sensor signal measurement applications.

These ADCs are equipped with digital filters that provide low-latency conversion results and 50Hz or 60Hz noise rejection in noisy industrial environments. The programmable gain amplifiers (PGAs) are low-noise and offer gains from 1 to 128 to amplify low-amplitude signals for resistive bridge or thermocouple applications. In addition, both devices incorporate a low-drift 2.5V voltage reference, reducing printed circuit board (PCB) area. Finally, two programmable excitation current sources (IDACs) are available to provide accurate resistive temperature detector (RTD) bias.

Device Features

• Low power consumption: as low as 280 µA

• Programmable gain: 1 to 128

• Programmable data rates: 2.5 SPS to 4 kSPS

• Simultaneous 50-Hz and 60-Hz rejection at ≤ 20 SPS with low-latency digital filter

• Analog multiplexer with 12 (ADS114S08B) or 6 (ADS114S06B) independently selectable inputs

• Dual-matched programmable current sources for sensor excitation: 10 µA to 2000 µA

• Internal reference: 2.5 V, 8 ppm/°C (typ) drift

• Internal oscillator: 4.096 MHz, 2% accuracy

• Internal temperature sensor

• Self offset and system calibration

• Four general-purpose i/os

• SPI-compatible interface

• Analog supply: unipolar (2.7 V to 5.25 V) or bipolar (±2.5 V)

• Digital supply: 2.7 V to 3.6 V

• Operating temperature: –40°C to +125°C

• Pinout compatible with ADS114S0x

Product Applications

• Field transmitters: temperature, pressure, strain, flow

• PLC and DCS analog input modules

• Temperature controllers

• Climate chambers, industrial ovens
