The ADS1120IRVAR is a 16-bit, high-precision analogue-to-digital converter (ADC) that combines features to lower system cost and reduce the number of components in small sensor signal measurement applications. The device features two differential inputs or four single-ended inputs via input multiplexers (MUX), a low-noise programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, a low-side switch, and a precision temperature sensor.

Product Features

• Low Current Consumption: As Low as 120 μA (typ) in Duty-Cycle Mode

• Wide Supply Range: 2.3 V to 5.5 V

• Programmable Gain: 1 V/V to 128 V/V

• Programmable Data Rates: Up to 2 kSPS

• 16-Bit Noise-Free Resolution at 20 SPS

• Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS with Single-Cycle Settling Digital Filter

• Two Differential or Four Single-Ended Inputs

• Dual-Matched Programmable Current Sources: 50 μA to 1.5 mA

• Internal 2.048-V Reference: 5 ppm/°C (typ) Drift

• Internal 2% Accurate Oscillator

• Internal Temperature Sensor: 0.5°C (typ) Accuracy

• SPI-Compatible Interface (Mode 1)

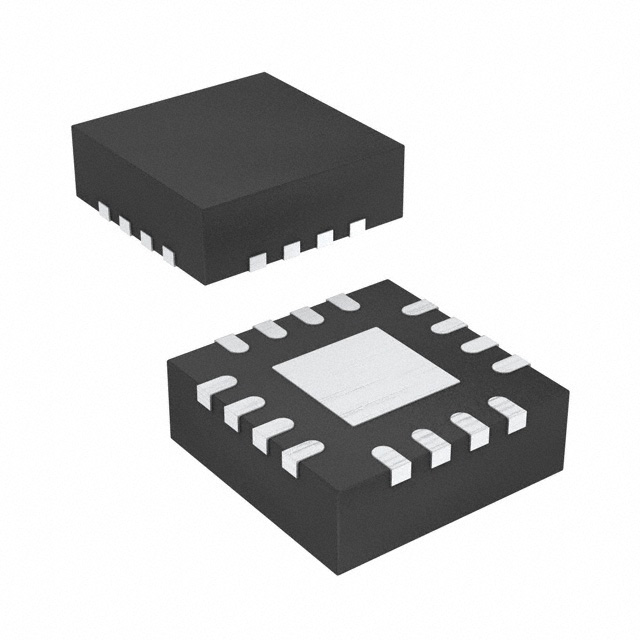

• Package: 3.5-mm × 3.5-mm × 0.9-mm VQFN

Applications

• Temperature Sensor Measurements:

– Thermistors

– Thermocouples

– Resistance Temperature Detectors (RTDs): 2-, 3-, or 4-Wire Types

• Resistive Bridge Sensor Measurements:

– Pressure Sensors

– Strain Gauges

– Weigh Scales

• Portable Instrumentation

• Factory Automation and Process Controls
