The ADS1246IPWRs are highly integrated precision 24-bit analogue-to-digital converters (ADCs). These devices feature an on-board low noise programmable gain amplifier (PGA), a precision delta-sigma (ΔΣ) analogue-to-digital converter with a single-cycle settling digital filter, and an internal oscillator. the ADS1247 and ADS1248 also offer a built-in, very low-drift voltage reference with an output capability of 10 mA, as well as two matched programmable current digital-to-analogue converters (DACs). These devices provide a complete front-end solution for temperature sensor applications, including thermocouples, thermistors, and resistance temperature detectors (RTDs).

Product Attributes

Product Category: Analogue to Digital Converters - ADCs

Series: ADS1246

Mounting Style: SMD/SMT

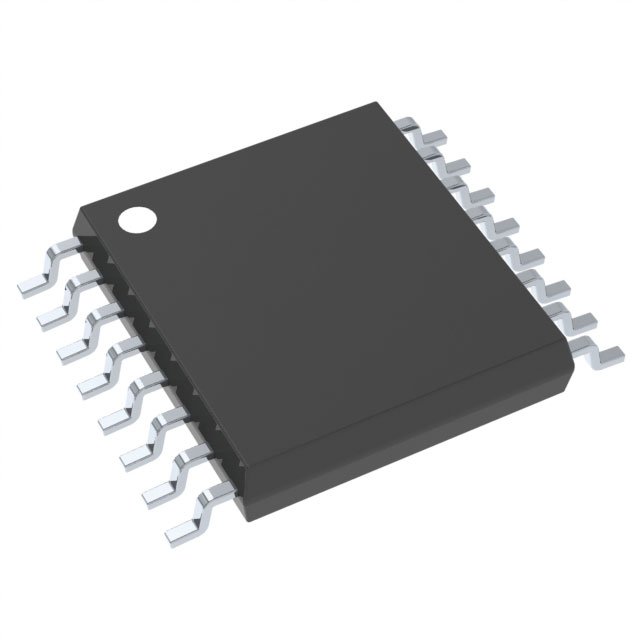

Package / Case: TSSOP-16

Resolution: 24 bit

Number of channels: 1 Channel

Interface type: SPI

Sample ratio: 2 kS/s

Input type: Differential

Architecture: Sigma-Delta

Analogue supply voltage: 2.7 V to 5.25 V

Digital supply voltage: 2.7 V to 5.25 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

DNL - Differential Nonlinearity: +/- 1 LSB

Features: 50/60 Hz Rejection, Oscillator, PGA, Temp Sensor

Height: 1 mm

INL - Integral Non-Linearity: 15 ppm

Length: 5 mm

Number of Converters: 1 Converter

Operating supply voltage: 2.7 V to 5.25 V

Power consumption: 2.3 mW

Reference Type: External

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 2.7 V

Width: 4.4 mm

Unit weight: 62 mg

Applications

- Temperature sensor measurements: RTDs, thermocouples, and thermistors

- Pressure measurement

- Flow Metering

- Factory automation and process control
