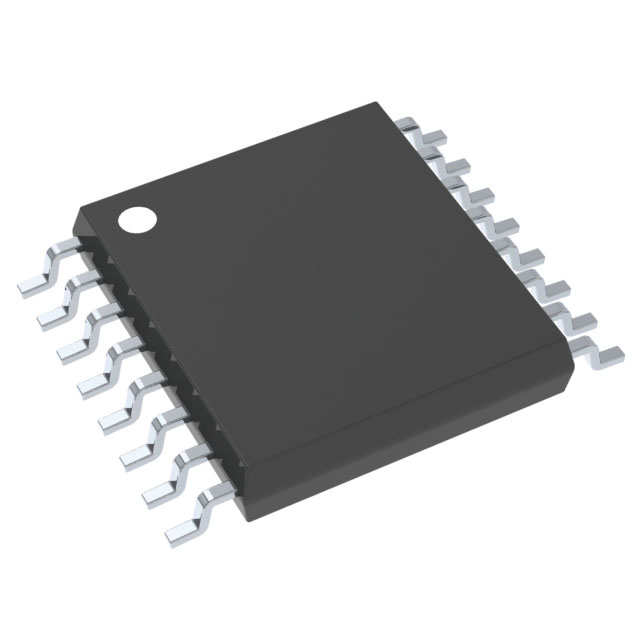

The ADS112C04IPWR is a 16-bit precision analogue-to-digital converter (ADC) that integrates a variety of features to reduce system cost and component count in small sensor signal measurement applications. The device features two differential inputs or four single-ended inputs via a flexible input multiplexer (MUX), a low-noise programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, and a precision temperature sensor.

Features

• Current Consumption as Low as 315 µA (typ)

• Wide Supply Range: 2.3 V to 5.5 V

• Programmable Gain: 1 to 128

• Programmable Data Rates: Up to 2 kSPS

• 16-Bit, Noise-Free Resolution at 20 SPS

• Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS With Single-Cycle Settling Digital Filter

• Two Differential or Four Single-Ended Inputs

• Dual-Matched Programmable Current Sources: 10 µA to 1.5 mA

• Internal 2.048-V Reference: 5 ppm/°C (typ) Drift

• Internal 2% Accurate Oscillator

• Internal Temperature Sensor: 0.5°C (typ) Accuracy

• I2C-Compatible Interface

• Supported I2C Bus Speed Modes: Standard-Mode, Fast-Mode, Fast-Mode Plus

• 16 Pin-Configurable I2C Addresses

• Package: 3.0-mm × 3.0-mm × 0.75-mm WQFN

Applications

• Field Transmitters: Temperature, Pressure, Strain, Flow

• PLC and DCS Analog Input Modules

• Temperature Controllers

• Heat Meters

• Patient Monitoring Systems: Body Temperature, Blood Pressure
