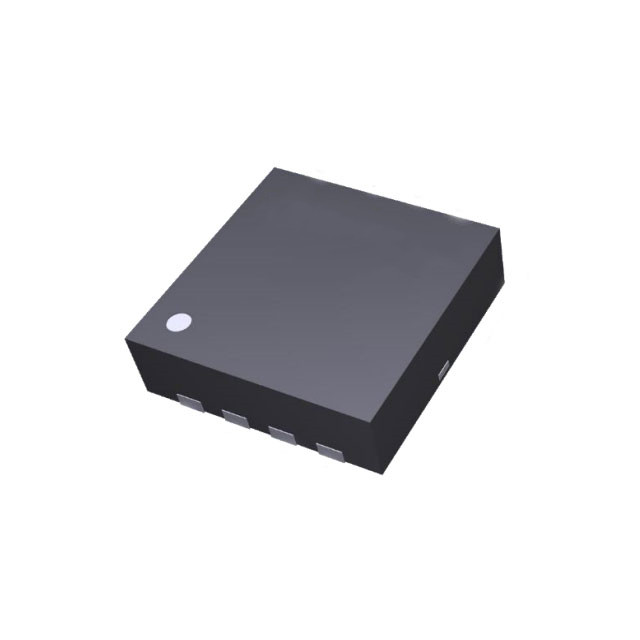

ISZ113N10NM5LFATMA1 OptiMOS™ 5 linear FETs have very low on-resistance and 100V VDS. The portfolio includes 11.3mΩ low on-resistance RDS(on). The device is available in TDSON-8FL or S3O8 and operates in a temperature range of -55°C to 175°C.

Product Attributes:

FET type: N channel

Technology: MOSFET (Metal oxide)

Drain-source voltage (Vdss) : 100 V

Current at 25°C - Continuous drain (Id) : 10A (Ta), 63A (Tc)

Drive voltage (Max Rds On, min Rds On) : 10V

On-resistance (Max.) at different ids and Vgs: 11.3 milliohm @ 20A, 10V

Vgs(th) (Max.) for different ids: 3.9V@36µA

Gate charge (Qg) at different Vgs (Max.) : 29 NC-@10 V

Vgs (Max.) : ±20V

Input capacitance (Ciss) at different Vds (Max.) : 2300 PF-@ 50 V

FET function: -

Power dissipation (Max) : 2.5W (Ta), 100W (Tc)

Operating temperature: -55°C ~ 175°C (TJ)

Mounting type: Surface mount type

Supplier device package: PG-TSDSON-8 FL

Package/housing: 8-PowerTDFN
