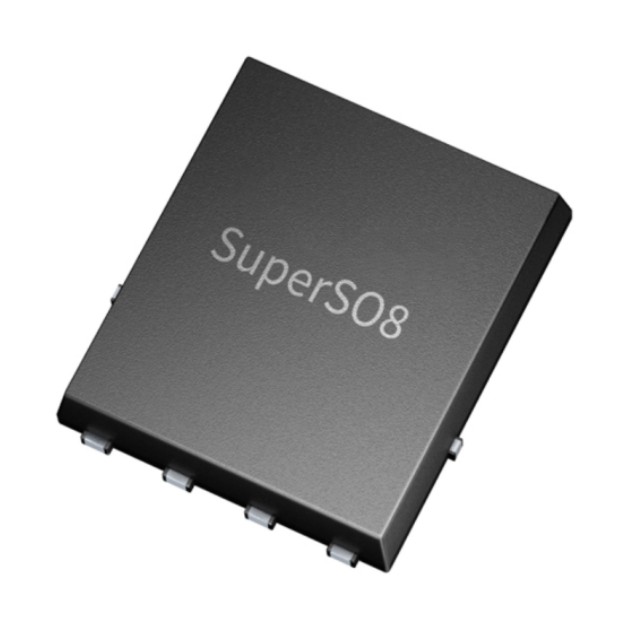

BSC015NE2LS5I is an N-channel enhancement-mode power MOSFET packaged in a TDSON-8 (PG-TDSON-8-6) package, part of the OptiMOS™ 5 series. This device features low on-resistance (RDS(on)), high switching speed, and excellent thermal performance, making it ideal for high-efficiency power management, motor drive, battery management systems, and other applications.

BSC015NE2LS5I Key Features

Low on-resistance: 1.5mΩ @ 10V VGS (maximum 2.5mΩ), significantly reducing power loss.

High current capability: Continuous drain current (ID): 33A (Ta) / 100A (Tc).

Peak current (IDRM): 147A (as specified by some suppliers).

Fast switching performance: Low gate charge (Qg): 10.5nC (typical), reducing switching losses.

Operating temperature range: -55°C to +150°C (TJ).

Maximum power dissipation: 2.5W (Ta) / 50W (Tc).

Compact package: TDSON-8-6 (PG-TDSON-8) surface mount package, suitable for high-density PCB designs.

BSC015NE2LS5I Typical Applications

Power Management: DC-DC converters, switching power supplies (SMPS), POL (point-of-load) regulators.

Motor Drive: Servo motors, brushless DC motor (BLDC) control.

Battery Management System (BMS): Battery protection circuits, charge/discharge control.

Communication and Computing Equipment: Server power supplies, CPU/GPU VRM (voltage regulation modules).
