IQE008N03LM5CGSC is a high-performance N-channel power MOSFET belonging to the OptiMOS™ 5 series. This device features extremely low on-resistance and excellent thermal performance, making it ideal for a wide range of high-performance switching power supplies (SMPS), motor drives, servers, and communication equipment.

IQE008N03LM5CGSC Core Features

Ultra-low on-resistance: At VGS = 4.5V, the maximum on-resistance (RDS(on)) is only 0.85 mΩ.

High avalanche capability: 100% avalanche tested to ensure reliable operation even under overload conditions.

Excellent thermal performance: Optimised thermal resistance design enhances system efficiency and reliability.

Logic-level compatible: N-channel, logic-level drive, easy to integrate with existing circuits.

Environmental features: Lead-free plating, RoHS compliant, and halogen-free.

IQE008N03LM5CGSC Specifications

Drain-source voltage (VDS): Maximum 30V

Drain current (ID): Maximum 252A

On-resistance (RDS(on)): Maximum 0.85 mΩ at VGS = 10V

Gate threshold voltage (VGS(th)): 1.2V to 2.0V

Gate charge (QG): 30 nC (0V to 4.5V)

Output capacitance (Coss): 1100 pF to 1400 pF

Input capacitance (Ciss): 4400 pF to 5700 pF

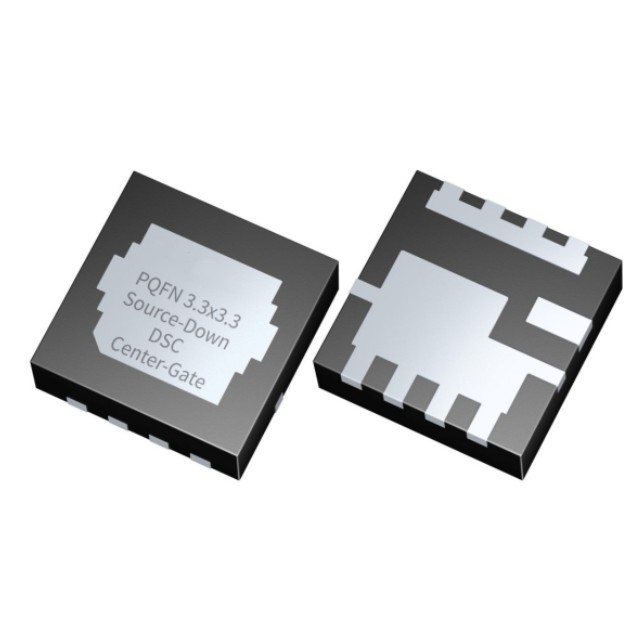

Package type: PG-WHTFN-9

IQE008N03LM5CGSC Application Areas

Switching power supplies (SMPS): such as synchronous rectification, DC-DC converters.

Motor drives: Suitable for industrial automation and electric vehicles.

Servers and communication equipment: Provides high efficiency and reliability.

Battery management systems: Used in battery management systems for efficient charging and discharging control.
