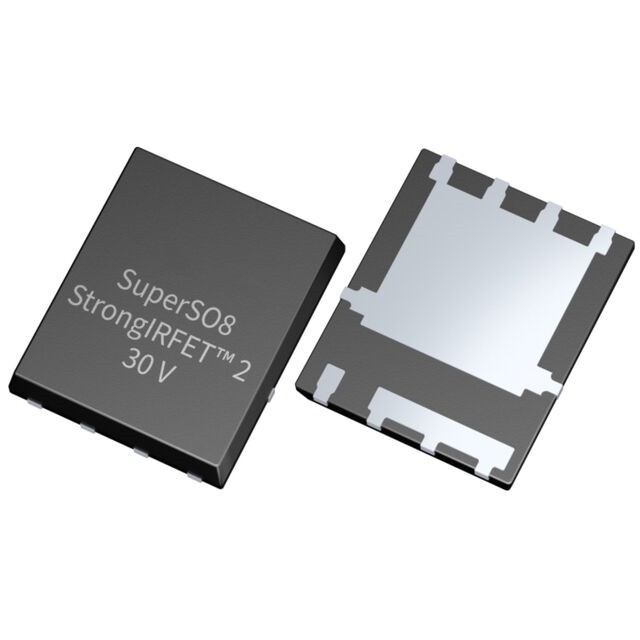

ISC015N03LF2S is an N-channel power MOSFET belonging to the OptiMOS™ LF series, packaged in a SuperSO8 (PG-TSDSON-8) package. This device features extremely low on-resistance (RDS(on) = 1.5 mΩ @ 10 V VGS) and optimised switching performance, specifically designed for high-efficiency power conversion, battery management, and motor drive applications.

ISC015N03LF2S Key Features

Low on-resistance: Maximum on-resistance (RDS(on)) as low as 1.5 mΩ (at VGS=10V), helping to reduce power loss.

High current capability: Maximum drain current (ID) up to 214A.

High avalanche capability: 100% avalanche tested to ensure reliable operation under overload conditions.

Excellent thermal performance: Optimised thermal resistance design enhances system efficiency and reliability.

Logic level compatibility: N-channel, logic level drive, easy to integrate with existing circuits.

Environmental features: Lead-free plating, RoHS compliant, and halogen-free.

Specifications

Model: ISC015N03LF2S

Brand: Infineon

Package: SuperSO8 (PG-TSDSON-8)

Channel type: N-channel enhancement mode

Drain-source voltage (VDS): 30V

Continuous drain current (ID): 30A (Ta) / 100A (Tc)

On-Resistance (RDS(on)):    1.5mΩ @ 10V (typical), 1.8mΩ @ 10V (maximum)

Gate Charge (Qg):    15nC @ 10V

Input Capacitance (Ciss):    1200pF @ 15V

Gate-Source Voltage (VGS) : ±20V (maximum)

Threshold voltage (VGS(th)):    2V @ 250µA

Power dissipation (PD):    2.5W (Ta) / 50W (Tc)

Switching time: Rise time < 5ns, fall time < 5ns

Operating temperature range:    -55°C to +150°C (TJ)

ISC015N03LF2S Application Areas

Switching Power Supplies (SMPS): such as synchronous rectification, DC-DC converters

Motor Drives: suitable for industrial automation and electric vehicles

Servers and Communication Equipment: providing high efficiency and high reliability

Battery Management Systems: used in battery management systems for efficient charging and discharging control
