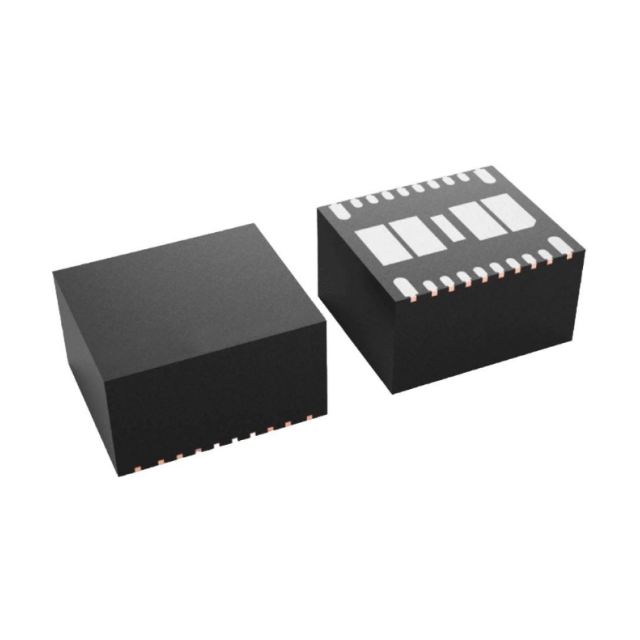

The TPSM843B22RDGR is a high-efficiency 18 V, 20 A synchronous buck module with an internally compensated, fixed-frequency advanced current mode (ACM) control architecture. Operating in FCCM mode, the module generates output voltages from 0.5 V to 7 V. The module is capable of providing high efficiency while operating at a low cost. The module is capable of operating at switching voltages from 0.5 V to 7 V while providing high efficiency. With switching frequencies up to 2.2 MHz, the module is available in a 6.5 mm x 7.5 mm x 4 mm overmolded package, making it an excellent choice for designs that require a small solution.

Product Characteristics

Type: Non-isolated PoL module

Number of Outputs: 1

Voltage - Input (Min): 4 В

Voltage - Input (Max): 18 В 18 В

Voltage - Output 1: 0.5 ~ 7V

Current - Output (Max): 20A

Power (W): 140W

Applications: ITE (commercial)

Features: Adjustable Output, Telemetry

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Housing: 25-PowerBQFN Module

Dimensions: 0.30 "L x 0.26 "W x 0.16 "H (7.5mm x 6.5mm x 4.0mm)

Scope of delivery: 25-B3QFN (6.5x7.5)

Applications

● Wireless and wired communication infrastructures

● Fibre optic networks

● Test and measurement

● Medical and healthcare
