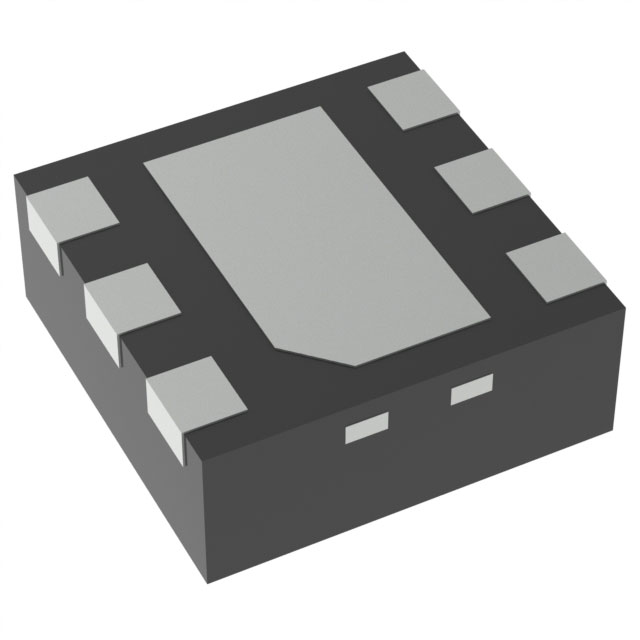

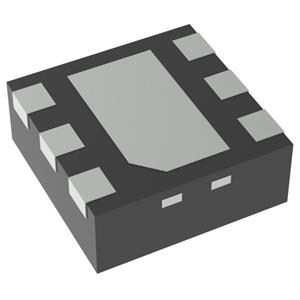

The LDL40PURY is a high precision voltage regulator designed for direct connection to automotive batteries in automotive applications or common batteries in industrial applications. An extended input voltage of up to 40 V enables the device to support load dump transients typical of automotive systems. Ultra-low quiescent current at light loads extends battery life in systems that are always in standby mode. The device is stabilised by small ceramic capacitors on the inputs and outputs. An enable logic control puts the LDL40 in shutdown mode, resulting in a total current consumption of less than 0.3 µmA, and thermal protection is also included.

Product Attributes

Output Configuration: Positive

Output Type: Adjustable

Number of regulators: 1

Voltage - Input (Max): 40V

Voltage - Output (Min/Fixed): 1.2V

Voltage - Output (Max): 12V

Voltage Drop (Max): 1V @ 200mA

Current - Output: 200mA

Current - Static (Iq): 5 µA

Current - Supply (Max): 500 µA

PSRR: 65dB (1kHz)

Control Features: Current Limit, Enable, Power Good

Protection Features: Overcurrent, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Package/Shell: 6-WDFN Exposed Pad

Supplier Device Package: 6-DFN (2x2)

Applications

● EV Powertrain

● Normally open battery connection applications

● Infotainment and instrument panels

● ADAS
