With maximum temperature drift of 2µV/°C, thermal noise floor of 5.5nV/rt-Hz, and CMRR of 100dB minimum, the OPA4323IPWR makes it easy to deliver precision performance in high-gain voltage detection applications such as Wheatstone bridges. This unique combination of higher accuracy (low out-of-phase voltage, drift, noise, distortion, and CMRR) and higher gain bandwidth (fast stabilisation and conversion) allows these devices to be used in a variety of applications such as motor rotary encoders, microphone audio preamplifiers, and ultrasonic sensors.

Product Attributes

Amplifier Type: Circuit Breaker (Zero Drift)

Number of circuits 4

Output type: Single-ended, rail-to-rail.

Voltage conversion rate 33 V/µs.

Gain Bandwidth: 20 MHz

Current - Input Compensation: 0.5 pA

Voltage - Input Compensation: 150 mV

Current - Supply: 1.6 mA (x4 channels)

Current - Output/Channel: 110 mA

Voltage - range (min): 1,7 В 1,7 В

Voltage - range (max): 5,5 В 5,5 В

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: surface mount

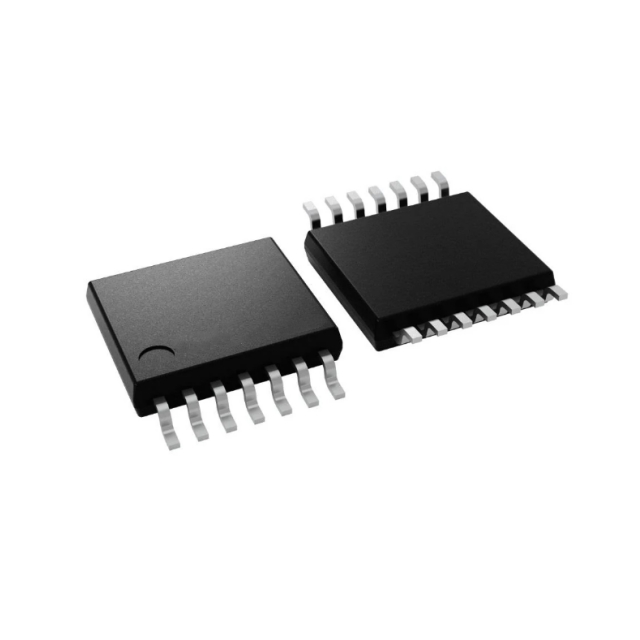

Package/Case: 14-TSSOP (0.173 inches, 4.40 mm wide)

Device Package: 14-TSSOP

Applications

● Amplifier drivers for ADCs

● High-side current detection

● Motor rotary encoders

● Transimpedance photodiode amplifiers

● Audio microphone preamplifiers

● Ultrasonic sensors
