The LPC802M011JDH20 is a family of low-cost 32-bit MCU processors based on the ARM Cortex-M0+ and operating at up to 15 MHz. 16 KB of Flash and 2 KB of SRAM are supported. peripherals include an I2C bus interface, up to two USARTs, an SPI interface, a multichannel timer, self-wake-up timer, a general-purpose 32-bit counter/timer, a 12-bit ADC, an analogue comparator, I/O ports configurable via a switch matrix, and up to 17 general-purpose I/O pins. Peripherals include an I2C bus interface, up to two USARTs, an SPI interface, a multi-channel timer, a wake-up timer, a general-purpose 32-bit counter/timer, a 12-bit ADC, an analogue comparator, I/O ports configurable via switch matrix, and up to 17 general-purpose I/O pins.

Product Attributes

Core Processor: ARM® Cortex®-M0+

Core specification: 32-bit single core

Speed: 15MHz

Connectivity: I²C, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, POR, PWM, WDT

Number of I/O: 16

Program memory capacity: 16KB (16K x 8)

Program memory type: Flash

RAM Size: 2K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V

Data Converter: A/D 12x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

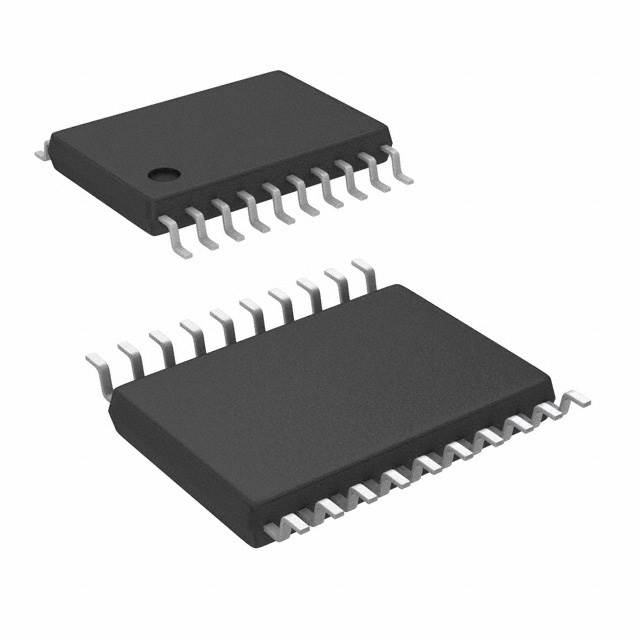

Package/Case: 20-TSSOP (0.173", 4.40mm wide)

Supplier Device Package: 20-TSSOP

Applications

● Hearing aid devices

● Smart watches

● Industrial controls

● Surround vision

● Vital signs monitors

● Air Conditioning (AC)

● Motion Control and Robotics

● Smart Cities

● POS terminals
