The S912ZVFP32F1CLQ integrates a precision MCU, voltage regulator, CAN and LIN physical layer, display controller, and instrument driver for entry-level automotive and industrial instrument cluster applications. The microcontrollers are part of the 16-bit S12 MagniV® mixed-signal MCU family and are part of an automotive dashboard solution that exemplifies high levels of integration on a single chip.

Product Attributes

Core Processor: S12Z

Core specification: 16-bit

Speed: 32MHz

Connectivity: CANbus, I²C, LIN, SCI, SPI

Peripherals: DMA, LCD, POR, PWM, WDT

Number of I/O: 100

Program memory capacity: 32KB (32K x 8)

Program memory type: Flash

EEPROM Size: 2K x 8

RAM Size: 2K x 8

Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V

Data Converter: A/D 8x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

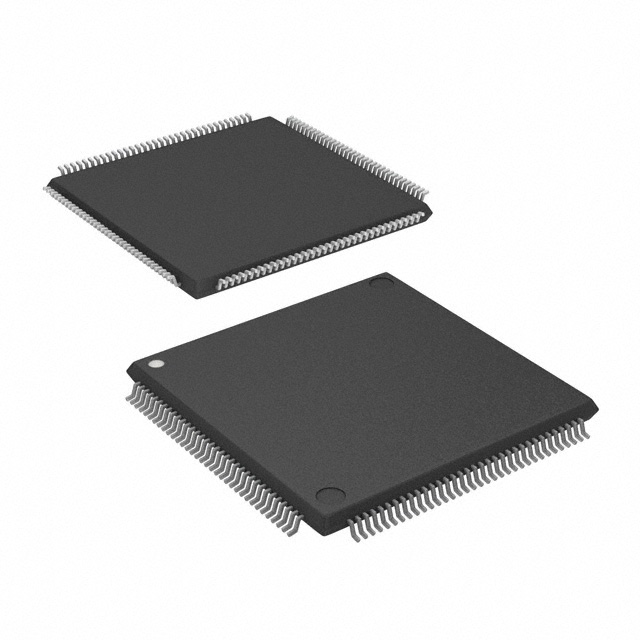

Package/Case: 144-LQFP

Supplier Device Package: 144-LQFP (20x20)

Applications

● Wearable products

● Hearing aid devices

● Wristbands

● Industrial controls

● Three-phase AC induction motors

● Brushless DC motor (BLDC) control
