The S32G379AACK1VUCT automotive network processor is AEC-Q100 compliant and operates over a temperature range of -40°C to +105°C. Typical applications include firmware-over-the-air (FOTA), automotive access points, security processors, service oriented gateways, vehicular computing, and area gateways.

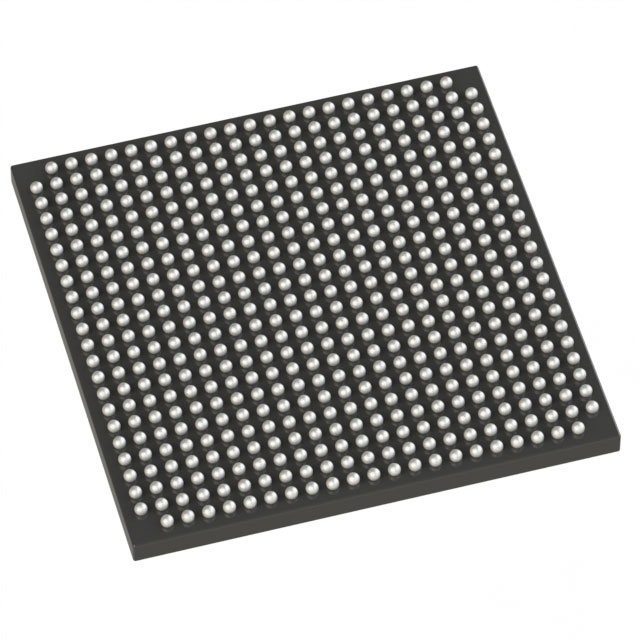

These processors are available in a 19mm x 19mm x 0.8mm 525 flip chip ball grid array package with pin assignments and software compatible with the S32G2 family.

Specification

Product Category: Microprocessors - MPUs

Mounting Style: SMD/SMT

Package / Case: FC-PBGA-525

Series: S32G3

Core: ARM Cortex A53, ARM Cortex M7

Number of Cores: 8 Core

Maximum Clock Frequency: 1.3 GHz

L1 Cache Instruction Memory: 32 kB

L1 cache data memory: 32 kB

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Qualification: AEC-Q100

Data RAM size: 20 MB

Interface type: I2C, SPI, UART

Memory type: DDR3L, LPDDR4, SRAM

Humidity sensitivity: Yes

Features

Extends the capabilities of the S32G family with software and pin compatibility with the S32G2 processor

Up to eight Arm Cortex-A53 cores with Arm Neon technology, with two quad-core clusters to provide optional cluster lockstep for applications and services

Up to four Arm Cortex-M7 Dual Core Lockstep (DCLS) complexes for real-time applications

Up to 20MB of system-on-chip static random access memory

Low-latency communications engine (LLCE) for in-vehicle network acceleration

Packet Forwarding Engine (PFE) for Ethernet acceleration with three ports supporting 2.5Gbps

Hardware Security Engine (HSE) for secure boot and acceleration of security services

16 isolation domains with Extended Resource Domain Control (XRDC)

Advanced functional safety hardware software for ASIL D systems

AEC-Q100 Level 2 device

Operating temperature range: -40°C to +105°C
