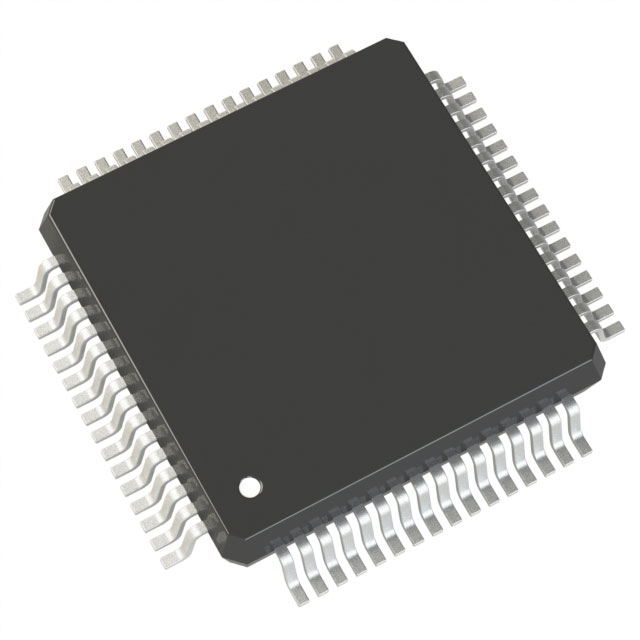

The S9KEAZ64AVLH 32-bit microcontrollers are cost-effective ARM®-based solutions for a wide range of automotive applications and are pin-compatible with the Kinetis EA family and future Kinetis automotive product families. The family includes a suite of analogue, communication, timing and control peripherals with different flash sizes and pin counts. These scalable devices are very robust and have strong ESD/EMC performance for cost-sensitive automotive applications. The family is supported by several development tools and reference hardware and software to help users get their designs off the ground quickly.

Product Attributes

Core Processor: ARM® Cortex®-M0+.

Core specification: 32-bit single core.

Speed: 48 MHz

Connectivity: CANbus, I²C, LINbus, SPI, UART/USART

Peripherals: LVD, POR, PWM, WDT

Number of I/O 57

Program memory capacity 64KB (64K x 8)

Programme memory type: Flash

RAM size: 8K x 8

Supply Voltage (Vcc/Vdd): 2.7V ~ 5.5V 2.7V ~ 5.5V

Data Converter: A/D 16x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/case: 64-LQFP

Scope of delivery: 64-LQFP (10x10)

Applications

● Infotainment connectivity modules

● Parking assistance

● DC/DC motor control

● Electronic parking brake

● TPMS

● Motorcycle CDI/EFI

● Battery Management

● Pump/Fan Controller

● Passive Push Button Start
