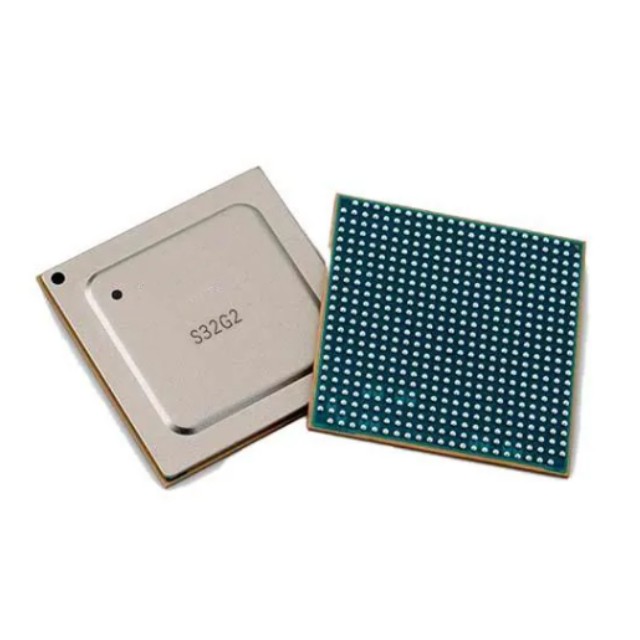

The S32G234MSBK1VUCT automotive network processor combines ASIL D security, hardware security, high-performance real-time and application processing, and network acceleration, and is suitable for use in service-oriented gateways, domain controllers, and security coprocessors.

Product Attributes

Core Processor ARM® Cortex®-M7

Cores/Bus Width 3-core, 32/64-bit

Speed 400MHz

Co-processor/DSP Multimedia; NEON

RAM Controller: -

Graphics Acceleration: None

Display and Interface Controller: -

Ethernet: 1/2.5Gbps (4)

Voltage - I/O: 1.2V, 1.8V, 2.5V, 3.3V

Operating Temperature: -40°C ~ 105°C (TA)

Grade: Automotive Grade

Qualification: AEC-Q100

Security Features: Encryption, Random Number Generator, Security Fuse Box, Security Memory, XRDC

Mounting Type: Surface Mount

Package/Housing: 525-FBGA, FCBGA

Vendor Device Package: 525-FCPBGA (19x19)

Additional Interfaces: DMA, FlexRay, GPIO, I²C, lINbus, MMC/SD, PCIe, SPI, UART

Features

Four Arm® Cortex®-A53 cores with Arm Neon™ technology with optional two-by-two lockstep for processing high-computing applications and services.

Three Arm Cortex-M7 fully lock-stepped cores for processing real-time applications

Low-latency communications engine (LLCE) to handle automotive network acceleration

Packet Forwarding Engine (PFE) for Ethernet network acceleration

Hardware Security Engine (HSE) for secure boot and acceleration of security services

On-chip hardware modules and software libraries that support ASIL D functional safety

AEC-Q100 Class 2 device: -40 °C to 105 °C
