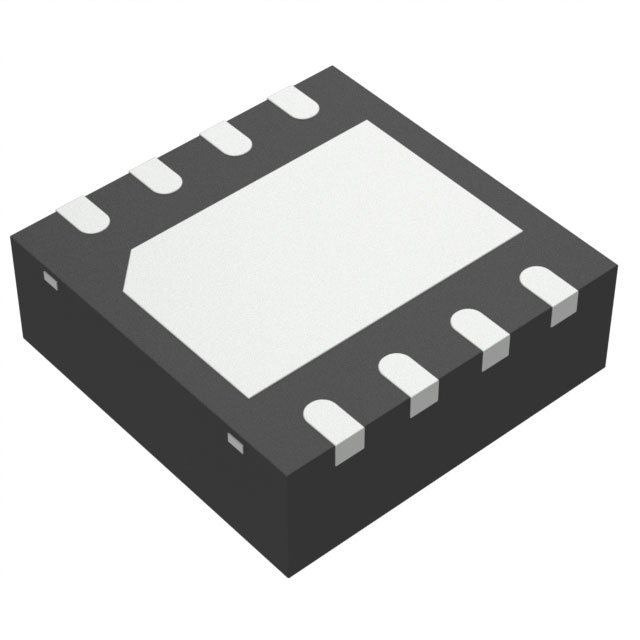

TLIN1021DRBRQ1 - Automotive Fault-Protected LIN Transceiver with Inhibit and Wake

Product Description

TLIN1021DRBRQ1 is a local interconnect network (LIN) physical layer transceiver. LIN is a low speed universal asynchronous receiver transmitter (UART) communication protocol that supports automotive invehicle networking. The TLIN1021-Q1 transmitter supports data rates up to 20 kbps and the receiver supports data rates up to 100 kbps for faster end-of-line programming.

Product Features

Support for 12V applications

Wide input operational voltage range:

– VSUP range from 4.5 V to 36 V

LIN transmit data rate up to 20 kbps

LIN receive data rate up to 100 kbps

5V tolerant input-level support

Integrated 45kΩ LIN pull-up resistor

Control of system-level power using the INH pin

Power-up/down glitch-free operation on LIN bus and RXD output

Junction temperatures from -40°C to 150°C

Applications

Body Electronics and Lighting

Infotainment and Cluster

Hybrid Electric Vehicles and Power Train Systems

Passive Safety

Appliances
