PIC32MX Low Power (XLP) MCUS achieve higher performance with lower operating, sleep, and deep sleep currents. These devices operate at speeds up to 72 MHz/116 DMIPS and are available with 128/32K and 256/64K flash /RAM options. The PIC32MX XLP family has a wealth of integrated peripherals, including two SPI/I2S interfaces for audio codecs, an 8-bit PMP for graphics or external memory, a 1 MSPS ADC supporting up to 13 channels, and a full-speed USB 2.0 device/host /OTG. These devices combine with software and tool support to deliver connectivity, graphics, Bluetooth ® enabled digital audio, and universal embedded control.

Product specification

Device: PIC32MX254F128BT-I/MM

Product Category: 32-bit microcontroller - MCU

Core processor: MIPS32® M4K™

Kernel specification: 32-bit single-core

Speed: 72MHz

Connection capability: I²C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG

Peripheral: Undervoltage detection/reset, DMA, HLVD, I²S, POR, PWM, WDT

Number of I/ OS: 17

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 32K x 8

Voltage - power supply (Vcc/Vdd) : 2.5V ~ 3.6V

Data converter: A/D 9x10b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

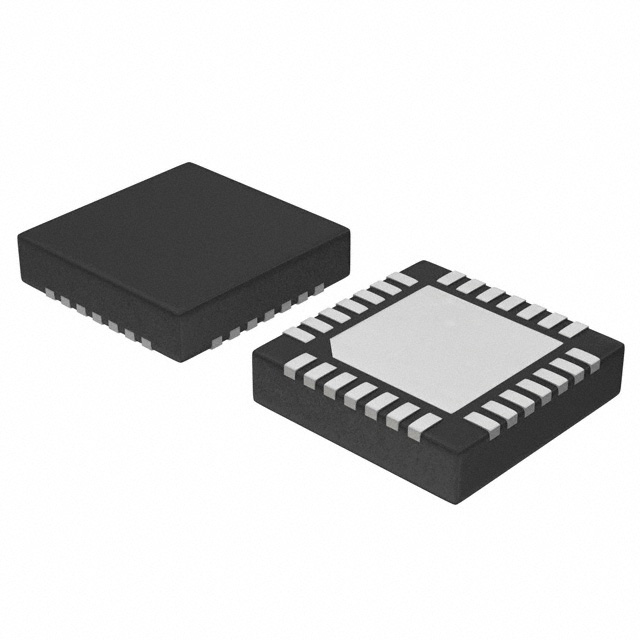

Package/housing: 28-VQFN bare pad

Supplier Package: 28-QFN-S (6x6)

Basic product number: PIC32MX254
