The M0G3107QPTRQ1 automotive 32-bit mixed-signal microcontroller (MCU) with CAN-FD interface is part of MSP's highly integrated family of ultra-low-power 32-bit MCUs based on the enhanced Arm Cortex-M0+ 32-bit core platform and operating at up to 80MHz. High-performance analogue peripheral integration supporting an operating temperature range of -40°C to 125°C and operating from a supply voltage of 1.62V to 3.6V.

Product Details:

Model: M0G3107QPTRQ1

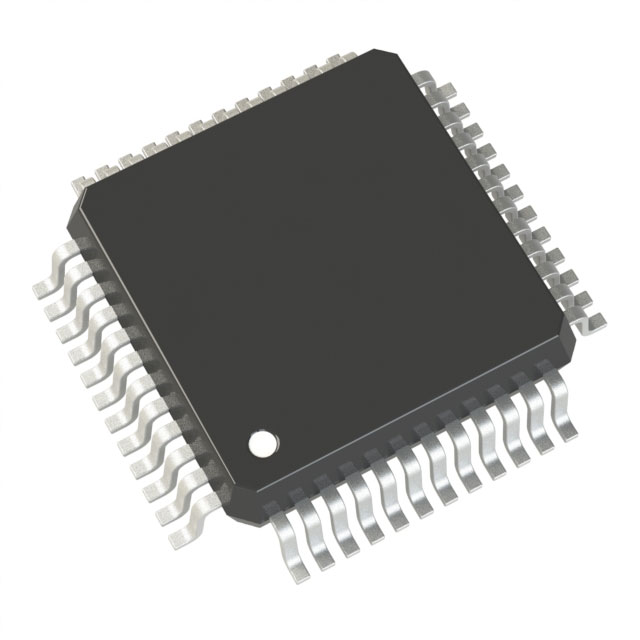

Package: LQFP-48

Type: 32-bit Microcontroller - MCU

Description: Automotive-grade 80MHz Arm® Cortex®-M0+ microcontroller IC with 128KB of flash memory, 32KB of SRAM, 2 x 12-bit 4Msps ADCs, operational amplifiers, CAN-FD, and a 32-bit 4Msps ADC. FD Automotive Grade 80MHz Arm® Cortex®-M0+ MCU with 128KB Flash, 32KB SRAM, 2 12-bit 4Msps ADCs, OpAmp, CAN-FD

M0G3107QPTRQ1 Specifications:

Core Processor: ARM® Cortex®-M0+

Core Specification: 32-bit

Speed: 80MHz

Number of I/Os: 44

Program Memory Capacity: 128KB (128K x 8)

Program Memory Type: Flash

RAM Size: 32K x 8

Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V

Data Converter: A/D 16x12b SAR

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Vendor Device Package: 48-LQFP (7x7)

Package/Case: 48-LQFP

M0G3107QPTRQ1 Product Features:

Core: Arm 32-bit Cortex-M0+ CPU with Memory Protection Unit up to 80MHz

Operating Characteristics

Operating Temperature Range: -40°C to 125°C

Wide Supply Voltage Range: 1.62V to 3.6V

Memory

Flash Memory up to 128KB with built-in Error Correction Code (ECC) Hardware Parity Memory up to 128KB with hardware parity. 128KB of flash memory

Up to 32KB of SRAM with hardware parity

High-performance analogue peripherals

Two 12-bit, 4Msps synchronous sampling analogue-to-digital converters (ADCs) with up to a total of 17 external channels

Hardware averaging for 14-bit effective resolution at 250ksps

A general-purpose amplifier (GPAMP)

Configurable 1.4V and 2.5V internally shared Reference Voltage (VREF)

Integrated temperature sensor

Integrated power monitor

Optimised low-power mode

RUN: 101µA/MHz (CoreMark)

SLEEP: 487µA/4MHz

STOP: 47µA/32kHz

STANDBY: 1.5µA with RTC and SRAM retention

SHUTDOWN: 80nA with IO wake-up capability IO wake-up capability
