M0G3107QRHBRQ1 Automotive Grade 80MHz Arm® Cortex®-M0+ Microcontroller MCU with 128KB Flash, 32KB SRAM, two 12-bit 4Msps ADCs, op-amps, CAN-FD.

Product Details:

Model: M0G3107QRHBRQ1

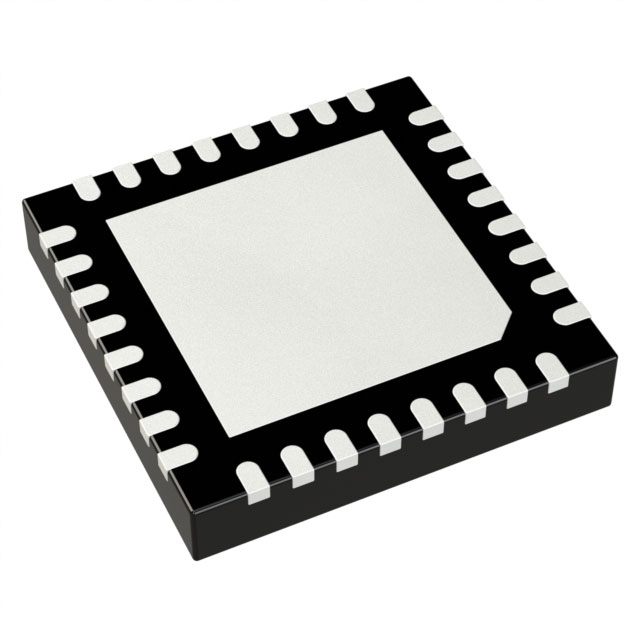

Package: VQFN-32

Type: 32-bit Microcontroller - MCU

Description: ARM® Cortex®-M0+ null Microcontroller IC 32-bit 80MHz 128KB (128K x 8) Flash 32-VQFN (5x5)

M0G3107QRHBRQ1 Product Features:

Core: Arm 32-bit Cortex-M0+ CPU with Memory Protection Unit up to 80MHz

Operating Characteristics

Operating Temperature Range: -40°C to 125°C

Wide Supply Voltage Range: 1.62V to 3.6V

Memory

Has built-in Error Correction Code (ECC) and up to 128KB of Flash Memory with hardware Up to 128KB of Flash memory

Up to 32KB of SRAM with hardware parity

Optimised low-power mode

RUN: 101µA/MHz (CoreMark)

SLEEP: 487µA/4MHz

STOP: 47µA/32kHz

STANDBY: 1.5µA with RTC and SRAM retention

SHUTDOWN: 80nA with IO wake-up capability

Flexible I/O functionality

Up to 60 GPIOs

Two 5V-tolerant IOs

Two high-drive IOs with 20mA drive intensity
