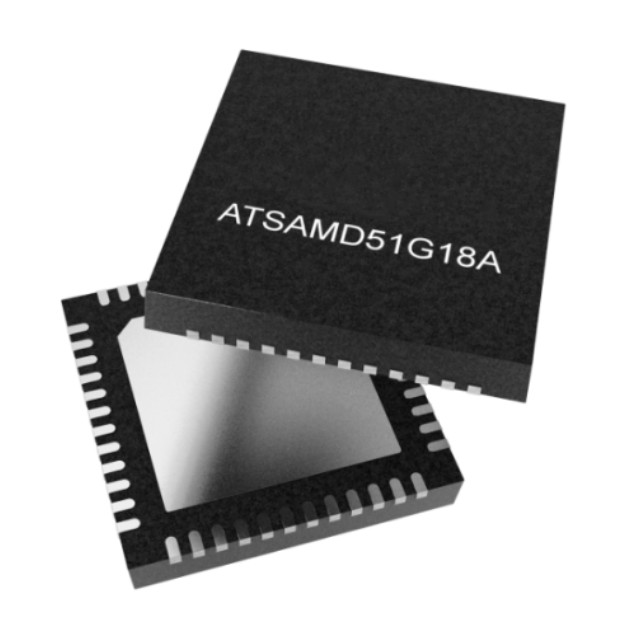

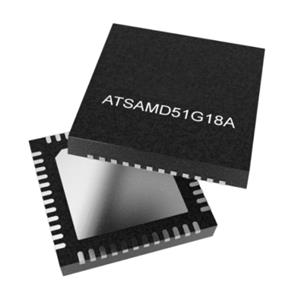

ATSAMD51G18A-MF high performance micro-controller series features a 32-bit ARM® Cortex®-M4 processor with Floating Point Unit (FPU), running up to 120 MHz ,up to 1 MB Dual Panel Flash with ECC, and up to 256 KB of SRAM with ECC.

Feature Of ATSAMD51G18A-MF

ARM Cortex-M4F CPU running at up to 120 MHz

Floating Point Unit (FPU)

Embedded Trace Module (ETM) with instruction trace stream

Error Correction Code (ECC)

Dual bank with Read-While-Write (RWW) support

EEPROM hardware emulation

Error Correction Code (ECC) RAM option

Up to 4 KB of Tightly Coupled Memory (TCM)

Up to 8 KB additional SRAM with backup retention capability

Five Low Power Modes (Idle, Standby, Hibernate, Backup, and Off )

Sleep Walking peripherals.

Battery backup support

Embedded Buck/LDO regulator supporting on-the-fly selection.

65µA/MHz active power consumption.

Five confidential modes of operation (ECB, CBC, CFB, OFB, CTR)

True Random Number Generator (TRNG)

RSA, DSA

Elliptic Curves Cryptography (ECC) ECC GF(2n), ECC GF(p)

Integrity Check Module (ICM) based on Secure Hash Algorithm (SHA1, SHA224, SHA256), DMA

32-channel Direct Memory Access Controller (DMAC)

Compatibility with SD and SDHC Memory Card Specification Version 3.01

Compatibility with SDIO Specification Version 3.0

Compliant with JDEC specification, MMC memory cards V4.51

eXecute-In-Place (XIP) support

Up to 75 MHz SDR operation and DDR support

Embedded host and device function

USART with full-duplex and single-wire half-duplex configuration

SPI inter-byte space

Up to 14-bit parallel capture mode

Up to 256 channel capacitive touch and proximity sensing

32-channel Event System

16-bit ,32-bit or 8-bit TC with two compare/capture channels

Two 24-bit Timer/Counters for Control (TCC), with extended functions:

Up to 5 wake-up pins with tamper detection and de-bouncing filter

Watchdog Timer (WDT) with Window mode

CRC-32 generator

Position Decoder (PDEC)

Frequency meter (FREQM)

One Configurable Custom Logic (CCL)

Differential and single-ended input

Automatic offset and gain error compensation

Oversampling and decimation in hardware to support 13-, 14-, 15-, or 16-bit resolution

Dual 12-bit, 1 MSPS Output Digital-to-Analog Converter (DAC)

Two Analog Comparators (AC) with Window Compare function

One temperature sensor

Power-on Reset (POR) and Brown-out detection (BOD)

Internal and external clock options

External Interrupt Controller (EIC)

36  programmable I/O pins
