The MSPM0L1306SRTRR microcontroller (MCU) is part of MSP's highly integrated family of ultra-low power 32-bit MSPM0 MCUs based on the enhanced Arm Cortex-M0+ core platform and operating at up to 32 MHz. The device offers high-performance analogue peripheral integration, supports an operating temperature range of -40°C to 125°C and operates from a supply voltage of 1.62V to 3.6V. 1.62V to 3.6V supply voltage.

Product Details:

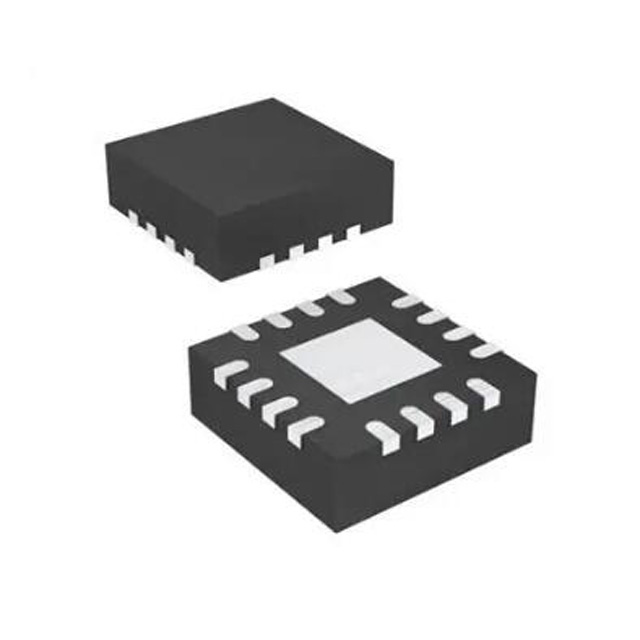

Model: MSPM0L1306SRTRR

Package: WQFN-16

Type: 32-bit Microcontroller - MCU

Description: 32MHz Arm® Cortex®-M0+ MCU with 64KB of Flash, 4KB of SRAM, 12-bit ADC, Comparators and OPAs

MSPM0L1306SRTRR Specifications:

Mounting Style: SMD/SMT

Package/Case: WQFN-16

Core: ARM Cortex M0+

Program Memory Size: 64 kB

Data Bus Width: 32 bit

ADC Resolution: 12 bit

Maximum Clock Frequency: 32 MHz

Number of Inputs/Outputs: 13 I/O

Data RAM Size. 4 kB

Supply voltage - min: 1.62 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 105 °C

DAC resolution: 8 bit

Data Ram type: SRAM

Interface type: I2C, SPI, UART

No. of ADC channels: 8 Channel

No. of timers/counters: 4 x 16 bit

Operating supply voltage. : 1.62 V to 3.6 V

MSPM0L1306SRTRR Product Features:

Core: Arm 32-bit Cortex-M0+ CPU up to 32MHz

Operating Characteristics

Operating Temperature Range: -40°C to 125°C

Wide Supply Voltage Range: 1.62V to 3.6V

Memory

Up to 64KB Flash

Up to 4KB SRAM

Flexible I/O Functions Up to 28 GPIOs Flexible I/O functions

Up to 28 GPIOs

Two 5V tolerant open-drain IOs with fail-safe protection

Enhanced communication interfaces

Two UART interfaces; one supports LIN, IrDA, DALI, Smart Card, Manchester and both support low-power operation in standby mode

Two I2C interfaces; one supports FM+ (1 Mbit/s), both support SMBus, PMBus, PBX and PBX, and both support SMBus, PMBus, PBX and PBX. Both support SMBus, PMBus and Wake from Stop

One SPI supporting up to 16Mb/s
