The MSPM0G3506SRGZR mixed-signal microcontroller with CAN-FD interface, based on the enhanced Arm Cortex-M0+ 32-bit core platform, operates at up to 80MHz and offers up to 128KB of embedded Flash program memory with built-in Error Correcting Code (ECC) and up to 32KB of SRAM with ECC and hardware parity options. The device offers up to 128KB of embedded Flash program memory with built-in ECC and up to 32KB of SRAM with ECC and hardware parity options.

Product Details:

Model: MSPM0G3506SRGZR

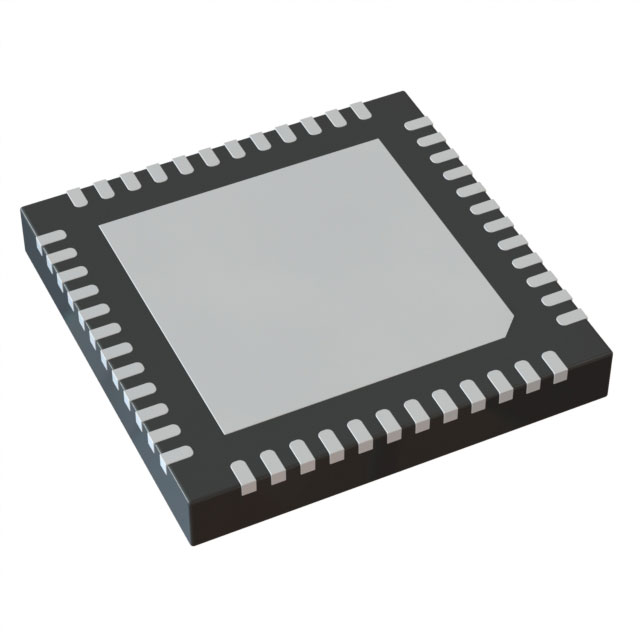

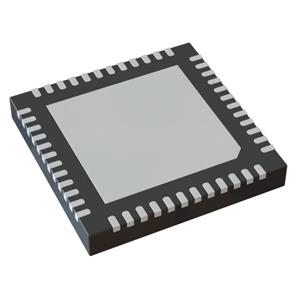

Package: VQFN-48

Type: 32-bit Microcontroller - MCU

Description: 80MHz Arm® Cortex®- M0+ MCU with 64KB of Flash, 32KB of SRAM, two 4Msps ADCs, DACs, three COMPs, two op-amps, CAN-FD, MATHACL. M0+ MCU

MSPM0G3506SRGZR Specifications:

Product Category: ARM Microcontroller - MCU

Mounting Style: SMD/SMT

Package/Case: VQFN-48

Core: ARM Cortex M0

Program Memory Size: 64 kB

Data Bus Width: 32 bit

ADC Resolution: 12 bit

Maximum Clock Frequency: 80 MHz

Number of I/O Data ROMs: 44 I/Os Number of I/O Data ROMs: 3 COMPs, 2 op-amps, CAN-FD, MATHACL, etc. Number of inputs/outputs: 44 I/O

Data RAM size: 32 kB

Supply voltage - min: 1.62 V

Supply voltage - max: 3.6 V

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 125 °C

DAC resolution: 12 bit

Data Ram type: SRAM

Interface type: CAN, I2C, SPI, UART

Number of ADC channels: 16 Channel

Number of timers/counters: 7 x 16 bit

Operating supply voltage: 1.62 V to 3.6 V

MSPM0G3506SRGZR Product Features:

Core

Arm 32-bit Cortex-M0+ CPU with Memory Protection Unit up to 80 MHz

Operating Characteristics

Operating Temperature Range: -40°C to 125°C

Wide Supply Voltage Range: 1.62 V to 3.6 V

Memory

Error-Correcting-Code (ECC) up to 128KB Flash Memory with ECC 128KB of flash memory

ECC-protected, hardware parity-checked SRAM up to 32KB

High-performance analogue peripherals

Two 12-bit, 4Msps synchronous sampling analogue-to-digital converters (ADCs) with up to 17 external channels in total

Hardware averaging for 14-bit effective resolution at 250ksps

A 12-bit, 1Msps digital-to-analogue converter (DAC) with integrated output buffers Converters (DACs)

Two zero-drift, zero-cross chopping operational amplifiers (OPAs)

0.5µV/°C drift with chopping

Up to 32x integrated programmable gain stage

One general purpose amplifier (GPAMP)

Three high-speed comparators (COMPs) with 8-bit reference DACs

High-speed mode with propagation delays of 32ns

Supports low-power operating modes down to <1µA

ADCs, Programmable analogue connections between ADC, OPA, COMP and DAC

Configurable 1.4V or 2.5V internal shared voltage reference (VREF)

Integrated temperature sensor
