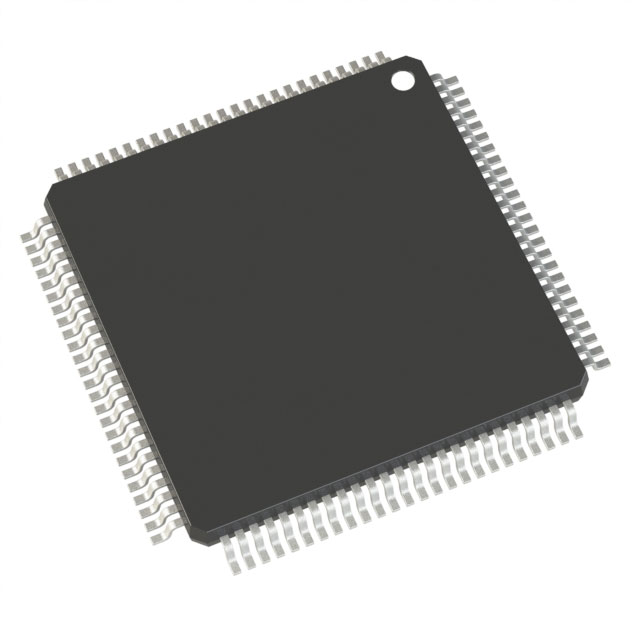

The PIC32MZ1024EFH100-I/PT Family offers a high-performance MCU running up to 252 MHz with up to 2 MB Flash and 512 KB SRAM targeting connectivity applications in Industrial, automotive, IOT , Graphics(HMI) and Motor Control Market Segments.

PIC32MZ EF family has best-in-class peripheral set including I2 S/SPI; 8-/16-bit Parallel Master Port (PMP) and External Bus Interface (EBI); 48-channel, 12-bit Analog-to-Digital Converter (ADC); Hi-Speed USB 2.0-compliant Device/ Host/OTG; 10/100 Mbps Ethernet MAC; Serial Quad Interface (SQI) and Crypto Engine for encryption/decryption.

These devices are fully supported by the MPLAB® Harmony integrated software framework and AECQ-100 Grade1 (125C) qualified.

Product Features

up to 250 MHz/415 DMIPS, MIPS Warrior M-class core

• Single-cycle MAC, saturating and fractional math

• IEEE 754-compliant

• FPU for fast single and double-precision math

• microMIPS mode for up to 35% code compression

• AEC Q100 Grade1 rated (-40c to 125C)

• Operating voltage range of 2.2V to 3.6V

• Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)

Memories

• Dual Panel Flash for live update support

• Up to 2MB Flash memory (plus an additional 160 KB of Boot Flash)

• Up to 512KB SRAM memory

• 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection

Advanced Analog Features

• 12-bit, 18 MSPS, 48-channel ADC module

• Six digital comparators and six digital filters

• Up to Two analog comparators with 32 programmable voltage references

• 18 Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)

• Up to Nine Capture inputs and Nine Compare/PWM outputs

Communication Interfaces

• Hi-Speed USB 2.0 Device/Host/OTG

• 10/100 Mbps Ethernet MAC with MII and RMII interface

• 50 MHz Serial Quad Interface (SQI)

• Peripheral Pin Select (PPS) functionality to enable function remap

• Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols

• Two CAN modules 2.0B Active with DeviceNet addressing support

• Six 4-wire SPI modules (50 Mbps)

• SQI configurable as an additional SPI module (50 MHz)

• Five I2C modules (up to 1 Mbaud) with SMBus support

Audio/Graphics Support

• Parallel Master Port (PMP)

• 50 MHz External Bus Interface (EBI)

• Audio data communication: I2S, LJ, RJ, USB

• Audio data control interface: SPI and I2C™

Software Support

• MPLAB X Integrated Development Environment (IDE)

• MPLAB® Harmony Integrated Software Framework

• TCP/IP, USB, Graphics and mTouch middleware

• RTOS Kernels, Express Logic ThreadX, FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
