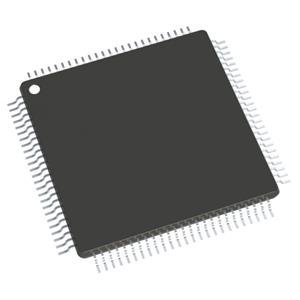

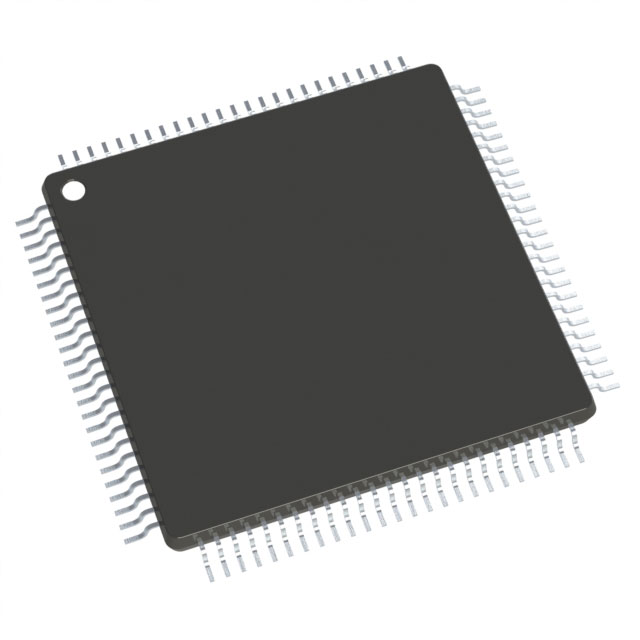

PIC32MX470F512LT-I/PF MCUs offer the perfect combination of 32-bit performance, memory, and integrated peripherals at a low cost. These devices run up to 120 MHz/150 DMIPS. The PIC32MX3/4 family boasts a rich set of integrated peripherals including two SPI/I2S interfaces for audio codecs, an 8-bit PMP for graphics or external memory, and on-board 10-bit 1 Msps ADC.

Product Features

120 MHz/150 DMIPS, MIPS32® M4K® core

USB 2.0-compliant Full-speed OTG controller

Two I2S/SPI modules for Codec and serial communications

Peripheral Pin Select (PPS) functionality

Parallel Master Port (PMP) for graphics interfaces

Temperature Range - 40°C to 105°C

Operating voltage range of 2.3V to 3.6V

512KB Flash memory (plus an additional 12 KB of Boot Flash)

128KB SRAM memory

MIPS16e® mode for up to 40% smaller code size

Pin-compatible with most Microchip 16-bit devices

Low-power management modes (Idle and Sleep)

Peripheral Pin Select (PPS) functionality

Up to 4 channels of hardware DMA with automatic data size detection

Five UARTs and two I2C™ modules

Hardware Real-Time Clock and Calendar (RTCC)

Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)

Five Capture inputs and Five Compare/PWM outputs

External graphics interface with up to 34 PMP pins

Audio data communication: I2S, LJ, RJ, USB

Audio data control interface: SPI and I2C™

Generation of fractional clock frequencies

Can be synchronized with USB clock

Can be tuned in run-time

10-bit 1Msps rate with one Sample and Hold (S&H)

Up to 28 analog inputs

Can operate during sleep mode

Two dual-input Comparator modules

Programmable references with 32 voltage points

In-circuit and in-application programming and debug

4-wire MIPS® Enhanced JTAG interface

Unlimited program and six complex data breakpoints

IEEE 1149.2-compatible (JTAG) boundary scan
