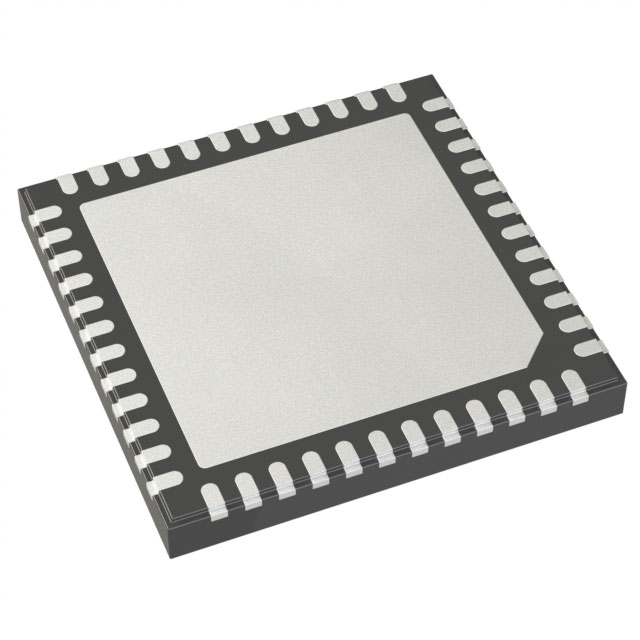

The PIC32MK0128MCA048-I/6MX device combines 32-bit, 120Mhz performance with up to 1MB of ECC-protected Flash memory and a rich peripheral set for applications such as motor control, industrial control, and the industrial Internet of Things (IIoT), as well as multi-channel CAN and CAN-FD applications.

Product Features

120Mhz MIPS32 microAptiv MCU core

Floating-point unit for single- and double-precision mathematical operations

MicroMIPS mode for 40% less code

Four 64-bit accumulators

Single-cycle MAC support for saturated and fractional maths

Memory

128KB Flash with ECC support

32KB SRAM

Advanced Analogue Features

3x 12-bit 3.75MSPS ADC cores with up to 18 analogue inputs

3x 100Mhz Operational Amplifiers

3x Analogue Comparators

1x 12-bit DAC

Advanced Timers

Up to 5x 16-bit or 1x 16-bit and 8x 32-bit Timer/Counters

4 Output Comparators

4 Input Capture

Motor Control PWM Timers

Up to four PWM pairs

- 8.3 ns PWM resolution

- Leading and trailing edge fading

- Dead-time insertion and compensation

- Up to 17 fault inputs and 12 current limit inputs

Motor Encoder Interface

2 Quadrature Encoder Interface (QEI) modules

- Four inputs each: A-phase, B-phase, home and index

Communication Interface

2x I2C ports

2x UART modules (up to 25Mbps) with LIN and IrDA support

2x SPI/I2S modules

Peripheral Pin Selection (PPS) to enable remappable pin functions

Software Support

Level B safety library, IEC 60730 (planned)

MPLAB X Integrated Development Environment (IDE)

MPLAB® Harmony integrated software framework

RTOS kernels: Express Logic ThreadX, FreeRTOS™, OPENRTOS®, Micriμm® μC/OS™ and SEGGER

-Matlab® Blockset

SCILAB X2C open-source rapid prototyping tool.
