Service Telephone:86-755-83294757
Trade Name:LM5157RTER
Data Manual:LM5157RTER.pdf
Brand:TI
Particular Year:23+

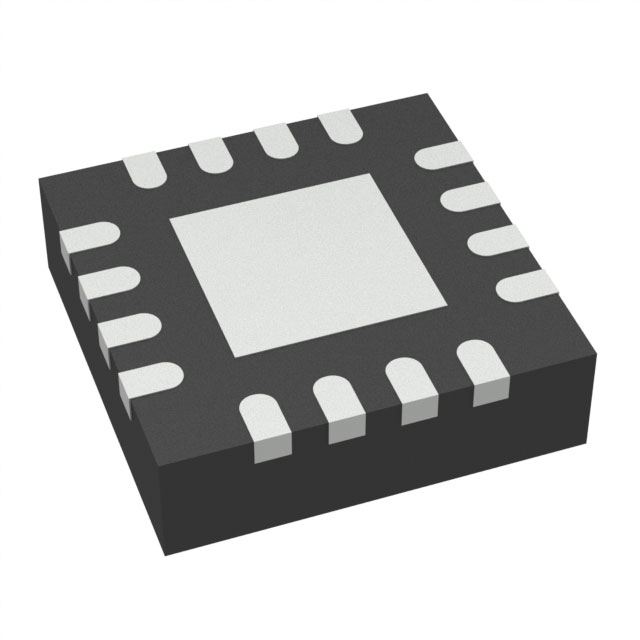

Package:16-WFQFN
Delivery Date:New and Original
Stock: 1000pcs
The LM5157RTER is a non-synchronous boost converter with an integrated 50V power switch and wide input range. The device can be used in boost, SEPIC and flyback topologies. The device can be started from a single battery with a voltage of at least 2.9V. The device can be operated from input supply voltages as low as 1.5V if the voltage at the BIAS pin is above 2.9V, and the BIAS pin can be operated at voltages up to 45V (50V absolute maximum). The switching frequency is dynamically programmable by an external resistor from 100kHz to 2.2MHz.
Product Features
Function: Boost, Boost/Buck
Output Configuration: Positive
Topology: Boost, Flyback, SEPIC
Output Type: Adjustable
Number of Outputs: 1
Voltage - Input (min): 2.9 V
Voltage - Input (Max): 2.9 V 45 В
Voltage - output (min/fixed): 1.5 В 1,5 В
Voltage - output (max.): 48 В
Current - Output: 6.5 A (switched)
Frequency - Switching: 100 kHz ~ 2.2 MHz
Synchronous rectifier: none
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package/case: 16-WFQFN with open area
Delivery incl.: 16-WFQFN (3x3)
Applications
● Battery powered wide input boost, SEPIC, Flyback converters
● LED bias power supplies
● Multi-output flyback converters without optocouplers
● Portable speaker applications
● Power supply modules
● Industrial PLCs
