The LMR23630APQDRRRQ1 SIMPLE SWITCHER® is an easy-to-use 36V, 3A synchronous buck regulator. With a wide input range of 4V to 36V, the device is suitable for voltage regulation of unregulated power supplies in applications ranging from industrial to automotive. Peak current mode control is used for simple control loop compensation and cycle-by-cycle current limiting. The low quiescent current of 75µA makes it suitable for battery powered systems. Internal loop compensation means that the user does not have to undertake the tedious task of designing loop compensation components. This also minimises the number of external components.

Product Characteristics

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of outputs: 1

Voltage - input (min): 4 В

Voltage - input (max): 36 В

Voltage - Output (min/fixed): 1 В 1 В

Voltage - output (max.): 28 В

Current - output: 3A

Frequency - switching: 400 kHz

Synchronous rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount, Wetted Surface

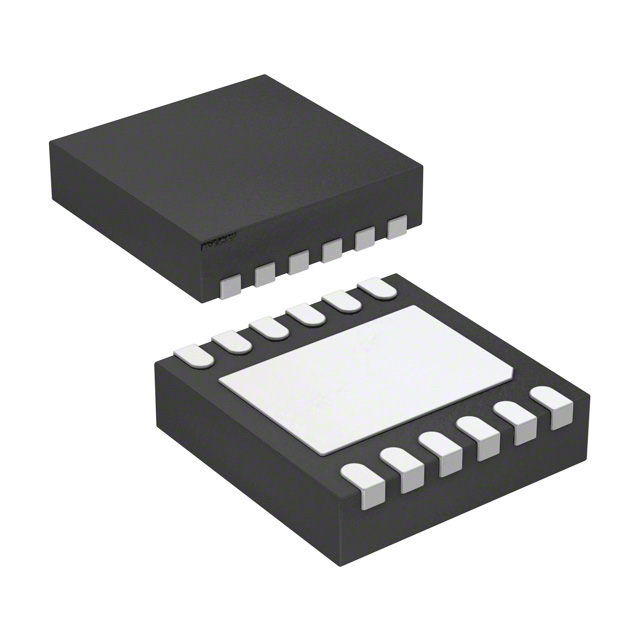

Package/Housing: 12-WFDFN with Open Pad

Power Supply Included: 12-SON (3x3)

Applications

● Automotive infotainment systems: clusters, head-up displays, heads-up displays

● USB charging

● General battery powered applications
