Trade Name:MCP33121-10T-E/MN
Data Manual:MCP33121-10T-E/MN.pdf
Brand:Microchip
Particular Year:23+

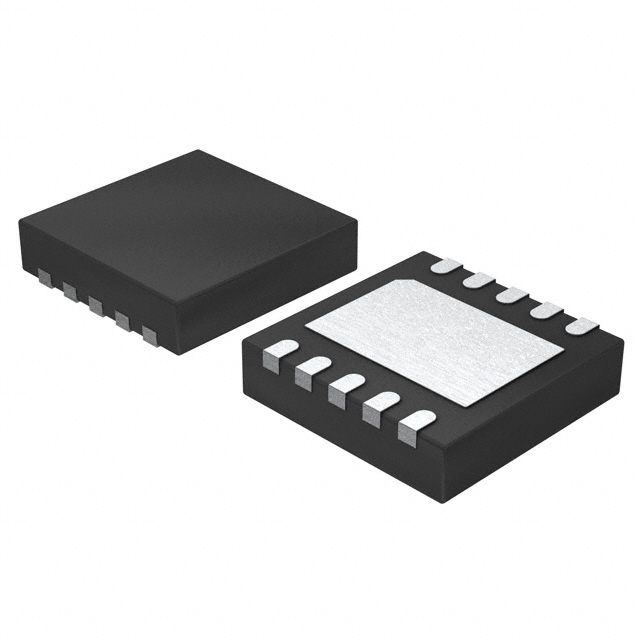

Package:10-TDFN
Delivery Date:New and Original
Stock: 1000pcs
The MCP33121-10T-E/MN 12-bit analogue-to-digital converter (ADC) is a single-ended input, high-performance, low-power, small form factor package ideally suited for battery-powered systems and remote data acquisition applications. The successive approximation register (SAR) architecture and industry-standard SPI serial interface allows 12-bit ADC functionality to be added to any PIC® microcontroller. Features 1M samples/sec, 1 input channel, and low power consumption (0.8µA typical in standby and 1.6mA typical in operation) in 10-pin MSOP and 10-pin TDFN packages.
Product Characteristics
Number of bits: 14
Sample rate (per second) 1M
Number of inputs: 1
Input type: Single-ended
Data interface: SPI
Configuration: ADC
Ratio - S/H:ADC: 0:1
Number of ADCs: 1 1
Architecture: SAR
Reference Type: External
Supply Voltage, Analogue: 1.7V ~ 1.9V
Supply Voltage, Digital: 1.7V ~ 5.5V
Operating Temperature: -40°C ~ 125°C
Package/Housing: 10-WFDFN with Open Area
Supplier Device Case: 10-TDFN (3x3)
Mounting Type: Surface Mount
Applications
● High precision data acquisition
● Medical instruments
● Test equipment
● Electric vehicle battery management systems
● Motor control applications
● Switch-mode power supply applications
● Battery powered devices
