The MCP3422A6-E/MS is a low-noise, high-precision 18-bit delta-sigma analogue-to-digital converter (ΔΣ A/D). The device converts analogue inputs to digital code with up to 18-bit resolution. The on-board 2.048V reference enables an input range of ± 2.048V (full scale range = 4.096V/P. The device can output analogue-to-digital conversion results at sample rates of 3.75, 15, 60 or 240 samples per second. The unit automatically calibrates offset and gain errors during each conversion. This allows the power supply to fluctuate in the face of temperature and power variations.

Product Features

Number of bits: 18

Sample rate (per second) 3,75

Number of inputs: 2

Input type: Differential

Data interface: I²C

Configuration: MUX-PGA-ADC

Number of ADCs: 1 1

Configuration: ΔΣ

Reference Type: Internal

Supply Voltage, Analogue: 2.7V ~ 5.5V

Supply Voltage, Digital: 2.7V ~ 5.5V

Characteristics: PGA

Operating Temperature: -40°C ~ 125°C

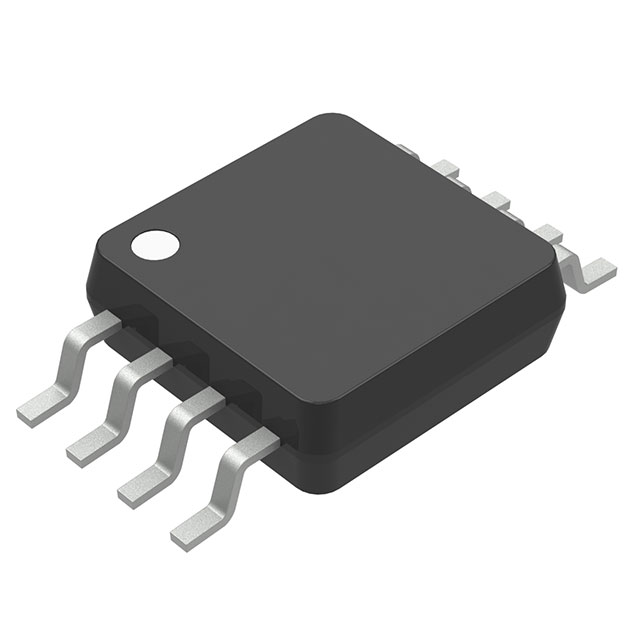

Package/Shell: 8-TSSOP, 8-MSOP (0.118" wide, 3.00mm)

Supplier Device Package: 8-MSOP

Mounting Type: Surface Mount

Applications

● Portable instruments and consumer products

● Use of RTDs, thermistors, and thermocouples

● Bridge sensing of pressure, strain, and force

● Weighing scales

● Battery fuel gauges

● Factory automation equipment
