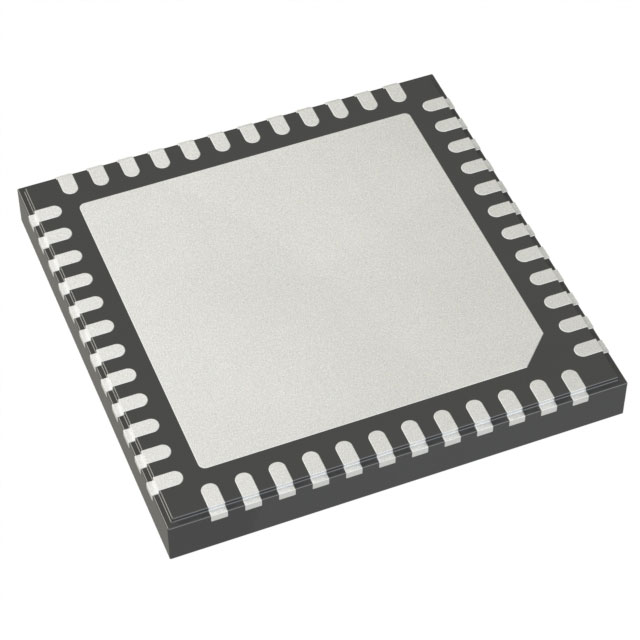

PIC32MK0128MCA048-E/6MX devices combine 32-Bit, 120Mhz performance with up to 1MB of ECC protected Flash memory, and a rich peripheral set targeting applications such as motor control, industrial control and IIoT and multi-channel CAN and CAN-FD applications.

PIC32MK0128MCA048-E/6MX devices feature 3x 12-Bit ADC's each operating at up to 3.75MSPS. In addition, multiple OpAmps. comparators and DAC's are included as well.

Feature

Floating Point Unit for single and double precision math

MicroMIPS Mode for 40% smaller code size

Four 64-bit Accumulators

Single Cycle MAC supporting saturating and fractional math

128KB Flash with Error Correcting Code support

32KB SRAM

3x 12-bit 3.75MSPS ADC Cores up to 18 analog inputs

3x 100Mhz Op amps

3x analog comparators

1x 12-bit DAC

Up to 5 16-bit or one 16-bit and eight 32-bit timer/counters

4 Output Compare

4 Input Capture

Up to four PWM Pairs

8.3 ns PWM Resolution

Leading and Trailing Edge Blanking

Dead Time Insertion and Compensation

Up to 17 Fault and 12 Current Limit Inputs

2x Quadrature Encoder Interfaces (QEI) Modules

Four Inputs each: Phase A, B, Home and Index

2x I2C ports

2x UART Modules (up to 25Mbps) with LIN and IrDA support

2x SPI/I2S modules

Peripheral Pin Select (PPS) to enable remapable pin functions

Class B Safety Library, IEC 60730 (planned)

MPLAB X Integrated Development Environment (IDE)

MPLAB® Harmony Integrated Software Framework

RTOS Kernels: Express Logic ThreadX, FreeRTOS™, OPENRTOS®, Micriμm® μC/OS™, and SEGGER

Mathworks Matlab® Blockset

SCILAB X2C Open Source Rapid Prototyping Tools
