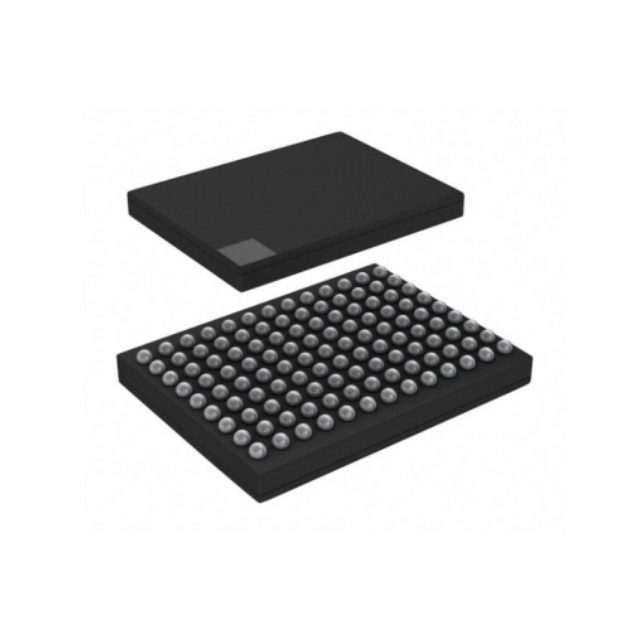

The ADDI9036BCBZRL is a complete 45 MHz front-end solution for charge-coupled device (CCD) time-of-flight (TOF) imaging applications. It includes an analogue front end (AFE), a programmable instruction set architecture (ISA) timing generator (ISATG), a 7-channel laser diode (LD) driver, a 7-channel H-driver, and a 16-channel vertical driver (V-driver). The Precision Timing® core allows adjustment of the CCD horizontal clock and LD outputs with a resolution of approximately 174 ps when operating at 45 MHz.

FEATURES

● 12-bit 45 MHz ADC

● CDS with variable gain

● 0 dB to 36 dB 10-bit VGA

● Black Level Clamp with Variable Level Control

● Precision timing core with 174 ps resolution

● Integrated 7-channel H driver and RG clock driver

● 7-channel LD driver

● Integrated 16-channel V driver

Applications

● TOF CCD cameras
