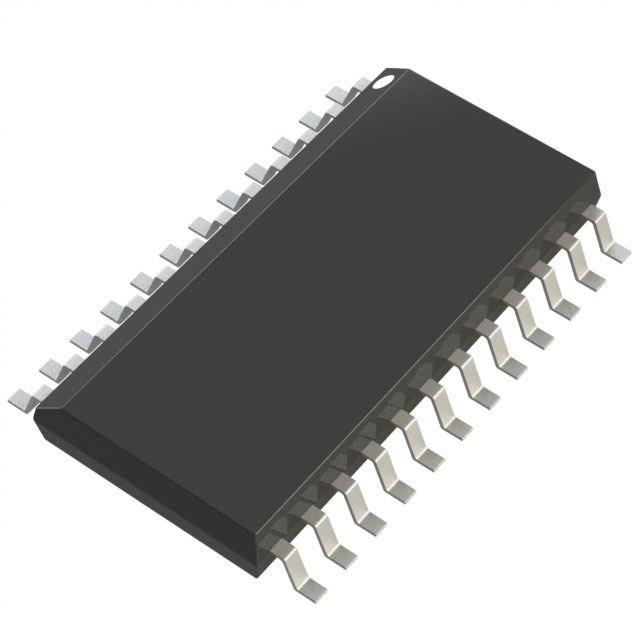

ADP1074ARWZ is a current mode, fixed frequency, active clamp, synchronous forward controller designed for isolated dc to dc power supplies.

Feature

Current mode controller for active clamp forward topology

Integrated 5 kV (wide body SOIC package) or 3.0 kV (LGA package) rated dielectric isolation voltage with Analog Devices, Inc., patented iCoupler technology

Wide voltage supply range

Primary VIN: up to 60 V

Secondary VDD2: up to 36 V

Integrated 1 A primary side MOSFET driver for power switch and active clamp reset switch

Integrated 1 A secondary side MOSFET drivers for synchronous rectification

Integrated error amplifier and <1% accurate reference voltage

Programmable slope compensation

Programmable frequency range: 50 kHz to 600 kHz typical

Frequency synchronization

Programmable maximum duty cycle limit

Programmable soft start

Smooth soft start from precharged load

Programmable dead time

Power saving light load mode using MODE pin

Applications

Isolated dc-to-dc power conversion

Intermediate bus voltage generation

Telecom, industrial

Base station and antenna RF power

Small cell

PoE powered device

Enterprise switches/routers

Core/edge/metro/optical routing

Power modules
