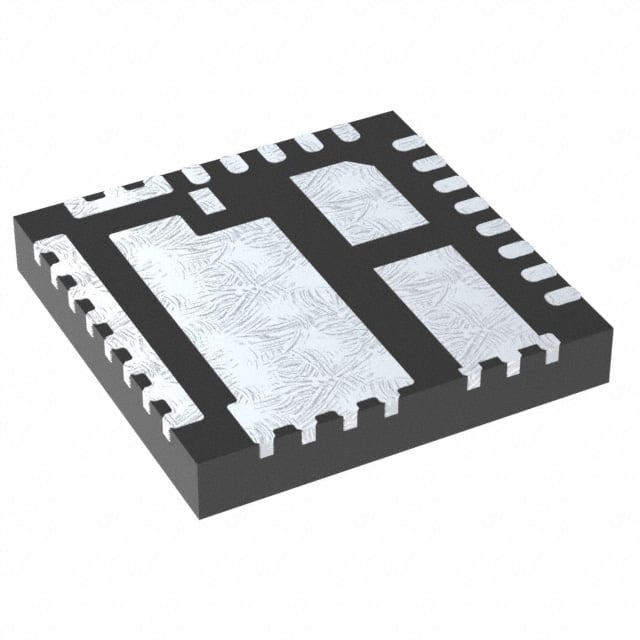

The ADP1032ACPZ-1 micropower management unit (PMU) is a high-performance, isolated PMU that combines isolated flyback and DC-DC regulators to provide two isolated power rails. In addition, four high-speed serial peripheral interface (SPI) isolated channels and three general-purpose isolators are included for channel-to-channel applications requiring low power consumption and small solution size. Input voltages range from 4.5V to 60V and can generate isolated output voltages of 6V to 28V (adjustable version) or 24V (fixed version) for VOUT1. They can also provide 5.15V, 5.0V or 3.3V factory programmable voltages for VOUT2.

Product Attributes

Voltage - Input: 4.5V ~ 60V

Voltage - Supply: 2.3V ~ 5.5V

Current - Supply: 1.9 mA

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Shell: 41-VFQFN Exposed Pad, CSP

Supplier Device Package: 41-LFCSP (9x7)

Applications

● Industrial automation and process control

● Instrumentation and data acquisition systems

● Data and power isolation
