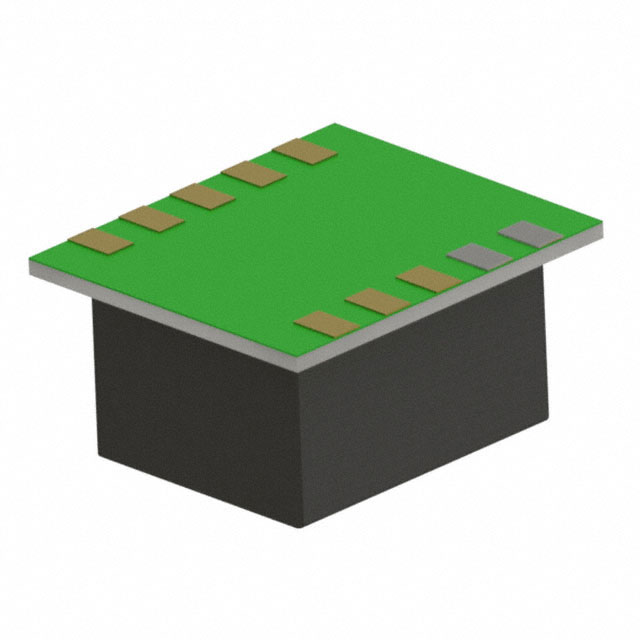

Trade Name:MAXM15463AMB
Data Manual:MAXM15463AMB.pdf
Brand:Maxim
Particular Year:23+
Package:10-SMD Module
Delivery Date:New original
Stock: 2000pcs
MAXM15463AMB is high-efficiency, synchronous step-down DC-DC modules with integrated controller, MOSFETs, compensation components, and inductor that operate over a wide input-voltage range.
Feature
Wide 4.5V to 42V Input Range
Adjustable 0.9V to 5V Output
Fixed 3.3V and 5V Output (MAXM15463 and MAXM15464)
±1.5% Feedback Accuracy
Up to 300mA Output-Current Capability
Internally Compensated
All Ceramic Capacitors
High Efficiency
Selectable PWM- or PFM-Mode of Operation
Shutdown Current as Low as 2.2μA (typ)
Flexible Design
Internal Soft-Start and Prebias Startup
Open-Drain Power Good Output (RESET Pin)
Programmable EN/UVLO Threshold
Robust Operation
Hiccup Overcurrent Protection
Overtemperature Protection
-40°C to +125°C Ambient Operating Temperature/-40°C to +150°C Junction Temperature
Rugged
Complies with CISPR22(EN55022) Class B Conducted and Radiated Emissions
Passes Drop, Shock, and Vibration Standards: JESD22-B103, B104, B111
Applications
4-20mA Current-Loop Powered Sensors
Battery-Powered Equipment
General Purpose Point-of-Load
HVAC and Building Control
Industrial Sensors and Process Control
LDO Replacement
