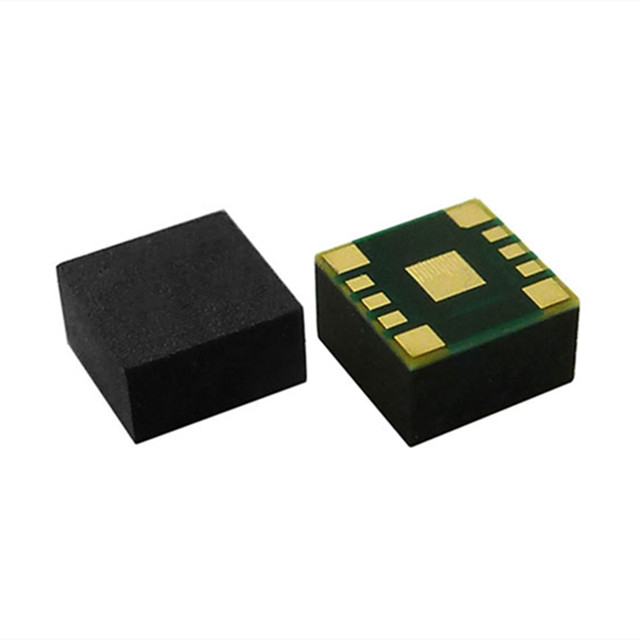

For picture reference, please see the specifications
< >

Commodity Model:RAA2100404GLG

Trade Name:DC Converter

Brand:Renesas

Particular Year:25+

Package:10-DFN

Delivery Date:New and original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
RAA2100404GLG
Package
10-DFN
Describe
Non-isolated PoL module DC converter 1 output 0.6 to 5V 4A 2.7V-5.5V input

Product Description

The RAA2100404GLG is a compact, synchronously step-down, non-isolated complete power supply that can provide a continuous current of up to 4A. By operating on a single 2.7V to 5.5V input power rail and integrating a controller, gate driver, power inductor and MOSFET, the RAA2100404GLG is optimized for space-constrained applications.


Core specifications

Type: Non-isolated PoL module

Output number: 1

Voltage - Input (minimum) : 2.7V

Voltage - Input (maximum) : 5.5V

Voltage-output ratio: 0.6 to 5V

Voltage - output 2: -

Voltage - Output 3: -

Voltage - output 4: -

Current - Output (maximum) : 4A

Application: ITE (Business)

Features: Adjustable output, telemetry

Operating temperature: -40°C to 125°C

Efficiency: 95%

Installation type: Surface mount type

Package/Housing: 10-DFN (3x3)

Size/Dimensions: 0.12" length x 0.12" width x 0.07" height (3.0mm x 3.0mm x 1.8mm)


The RAA2100404GLG is based on a peak current mode control scheme, providing fast transient response and excellent loop stability. The output voltage can be set as low as 0.6V, and the set point accuracy is better than 1.5% within the range of lines, loads and temperatures. The default operating frequency is set to 2MHz. However, it can also be set between 500kHz and 4MHz through an external resistor.


Application scenarios

The RAA2100404GLG can be applied to embedded systems that require stable power supply, such as industrial control equipment, Internet of Things terminals or small electronic devices. ‌
