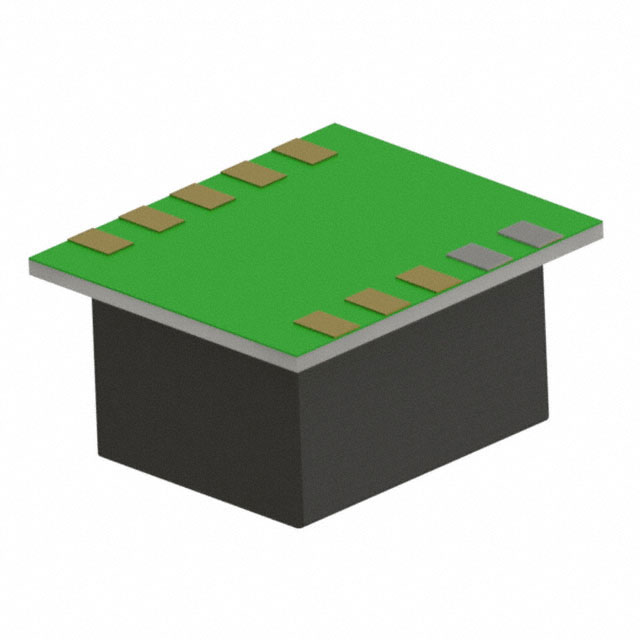

MAXM17532AMB is a high-efficiency, synchronous, step-down DC-DC power module with integrated controller, MOSFETs, compensation components, and inductor that operates over a wide input-voltage range.

Feature

Easy to use

Wide 4V to 42V Input

Adjustable 0.9V to 5.5V Output

±1.75% Feedback Accuracy

Up to 100mA Output Current

Internally Compensated

All Ceramic Capacitors

High Efficiency

Fixed-Frequency PWM

Pulse Frequency Modulation (PFM) Mode to Enhance Light-Load Efficiency

Shutdown Current as Low as 1.2µA (typ)

Flexible Design

Programmable Soft-Start and Prebias Startup

Open-Drain Power Good Output (Active-Low RESET Pin)

Programmable EN/UVLO Threshold

Robust Operation

Hiccup Overcurrent Protection

Overtemperature Protection

-40°C to +125°C Ambient OperatingTemperature/-40°C to +150°C Junction Temperature

Rugged

Complies with CISPR22 (EN55022) Class B Conducted and Radiated Emissions.

Passes Drop, Shock, and Vibration Standards–JESD22–B103, B104, B111

Applications

4mA to 20mA Current-Loop Powered Sensors

Battery-Powered Equipment

HVAC and Building Control

Industrial Sensors and Encoders

LDO Replacement
