The MAX38908ANL are fast transient response, high PSRR nMOS linear regulators that provide up to 4A load current. These regulators support a wide input supply range from 0.9V to 5.5V and a BIAS voltage range of 2.7V to 20V, providing a wider range of supply options for a variety of applications. Output accuracy is maintained at ±1% over line, load, and temperature variations, and good PSRR is achieved with only 300mV input-to-output headroom at full load.

Product Characteristics

Output Configuration: Positive

Output Type: Programmable

Number of Regulators 1

Voltage - Input (maximum): 5,5 В

Voltage - output (min/fixed): 0,6 В

Voltage - output (max.): 5 В

Voltage drop (max.): 0,15V at 4A

Current - Output: 4A

Quiescent current (Iq): 150µA

PSRR: 60 dB ~ 42 dB (1 kHz ~ 100 kHz)

Control Characteristics: Enable, Reset Outputs

Protection: Overcurrent, Overheat, Reverse Current, Soft Start

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

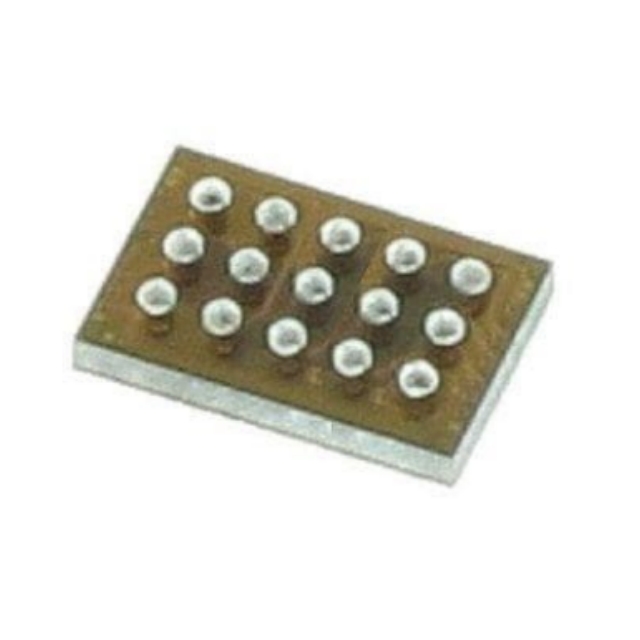

Package/case: 15-XFBGA, WLBGA

Delivery incl. 15-WLP (2,35x1,29)

Applications

● FPGAs and DSPs

● Medical, audio and instrumentation

● Server μPs

● Portable cameras

● PLCs

● Base stations
