The MAX38904CANL linear regulators are low dropout (LDO) linear regulators with low output noise of 5.1µVRMS and a frequency range of 10KHz to 100KHz. These regulators provide up to 2A of output current with ±1% output accuracy, an input voltage range of 1.7V to 5.5V, and a programmable output voltage range of 0.6V to 5V. The linear regulators feature an 8µF (minimum) output capacitance, programmable soft-start rate, output-to-input reverse-current protection, and power-normal-status pins, making them very easy to use and providing robust protection. protection.

Product Attributes

Output Configuration: Positive

Output Type: Adjustable

Number of regulators: 1

Voltage - Input (Max): 5.5V

Voltage - Output (Min/Fixed): 0.6V

Voltage - Output (Max): 5V

Voltage Drop (Max): 0.3V @ 2A

Current - Output: 2A

Current - Static (Iq): 1.3 mA

PSRR: 70dB ~ 40dB (1kHz ~ 1MHz)

Control Characteristics: Enable

Protection Functions: Overcurrent, Over Temperature, Reverse Current, Soft Start

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

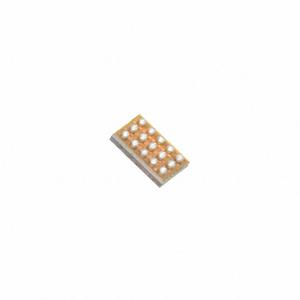

Package/Housing: 15-XFBGA, WLBGA

Supplier Device Package: 15-WLP (2.1x1.34)

Applications

● Communication systems

● Test equipment

● Medical equipment

● High-end audio systems

● High-resolution data acquisition systems
